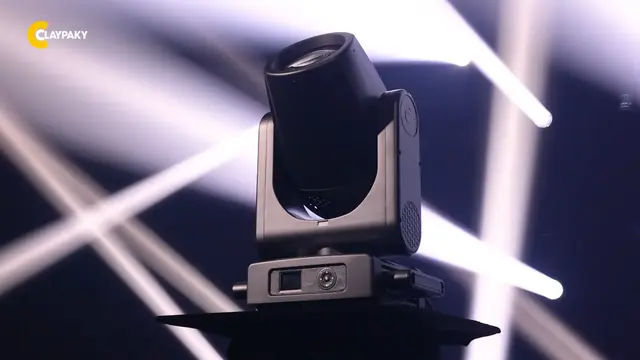

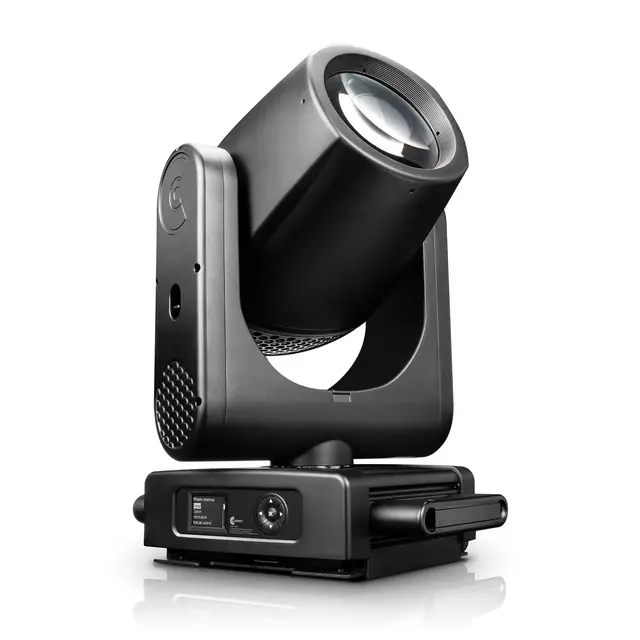

Ultimo Sharpy: The Icon Returns. Sharper Than Ever.

Meet the new benchmark in compact beam lighting: Ultimo Sharpy.
Ultimo Sharpy is more than just a comeback — it’s a leap forward. Building on the legacy of the original Sharpy, this next-generation IP66-rated beam moving head is brighter, faster, and tougher than ever. At the heart of Ultimo Sharpy lies a custom 250W OSRAM short-arc High-Intensity Discharge (HID) lamp, designed for maximum output and sustainability.
Engineered for top-tier performance in any environment — indoor or outdoor space, a live event or a broadcast — Ultimo Sharpy delivers razor-sharp beams, ultra-smooth movement, and an unbeatable power-to-size ratio.

• Light SourceCustom 250W OSRAM short-arc High-Intensity Discharge (HID) lamp (up to 6,000 hrs lifespan)
• Light Output100,000 lux @ 20 m / 9,300+ fc @ 65 ft
• Zoom range2° beam angle with focus lens
• EffectsTrue CMY color mixing system (wheel-based for faster transitions) / Original 14-color fixed color wheel / Original high-contrast gobo wheel (17 position + open) / Dual independently rotating prisms / Integrated 10° frost filter / Ultra-smooth electronic dimming with high-resolution fades

LIGHT SOURCE

• Source type: Short-arc High Intensity Discharge (HID) lamp
• Colour Temperature: 7200K
• CRI: Up to 74
• Lamp life expectancy: 6000 hrs L70
  *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• Zoom range: 2° beam angle with focus lens
• Lumen output: 11200 (Integrating Sphere)

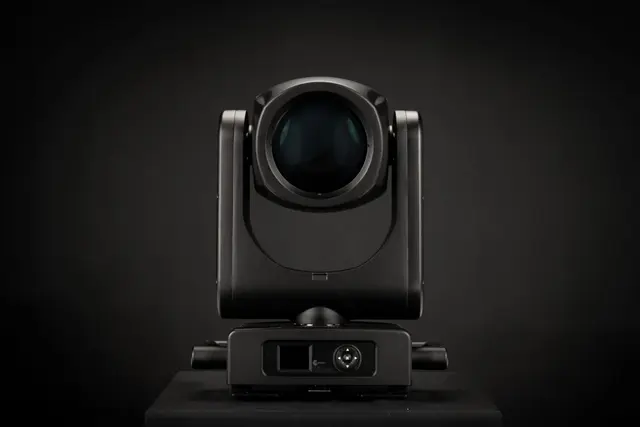

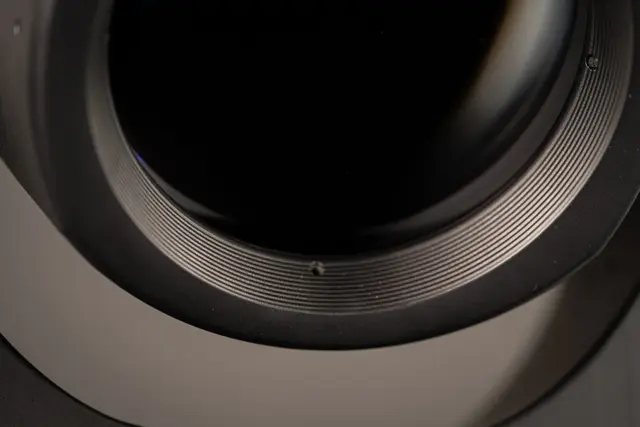

• Front lens diameter: 140mm
• Optical system: High efficiency

NOISE LEVEL

• Auto: 50.0 dBA
• Low noise: 43.0 dBA

CONTROL and CONNECTIONS

• Personalities: 3 personalities with 27 / 16 / 27 control channels
• Protocols: DMX, Art-Net, RDM, sACN, CRMX (Lumen Radio)

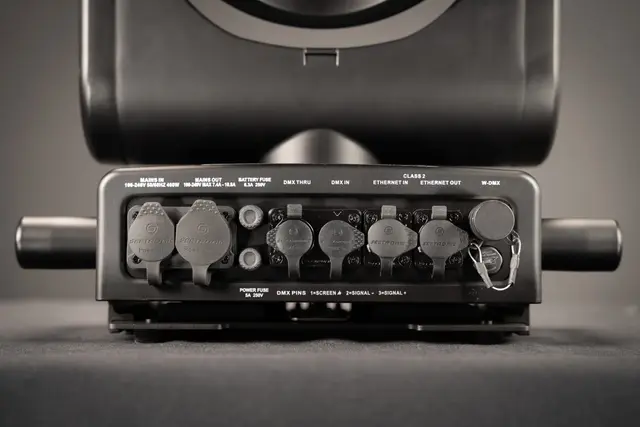

• Connectors:
  • Locking 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN/OUT
• Power connector: PowerCon True1 IN/OUT
• Web Server: Built In
• CloudIO: Fully compatible

DYNAMIC EFFECTS

• Colours:
  • Fixed color wheel with 14 dichroic colors - True CMY color mixing system
• Gobos:
  • 1 Static Gobo Wheel with 17 gobos
• Frost:
  • 1 Linear heavy frost 10° for wash effect
• Rotating Effects:
  • 1 8 facet prism with rotation in both directions at variable speed
  • 1 6 facet linear prism with rotation in both directions at variable speed
• Movement:
  • Tilt: 275°
  • Pan: infinite rotation
  • Accuracy: Resolution ± 0.46°
  • Absolute position
  • Mechanical Pan/Tilt lock for safe transportation and maintenance
• Dimmer/Shutter:
  • High resolution mechaical dimmer - 24 bit, 5 curves
  • Ultra-smooth electronic dimmer with high resolution fades
• Special feature:
  • Sharpy emulation mode for plug-and-play legacy compatibility

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display Graphic LCD backlit b/w display
• Firmware upload from another fixture
• Firmware upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM

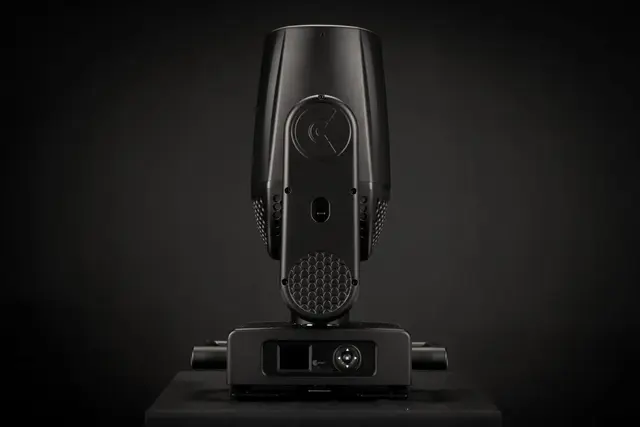

HOUSING

• Aluminum and steel structure with plastic covers
• Two side handles for transportation

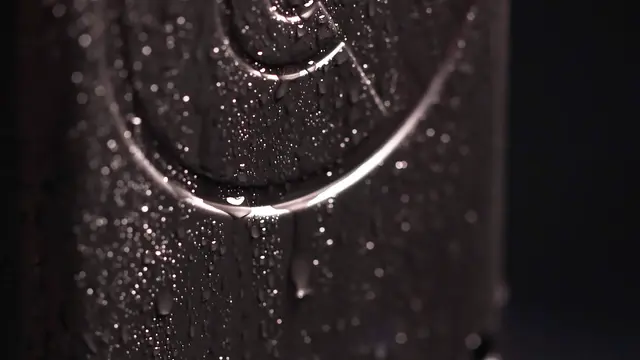

• IP66 protection rate

WORKING POSITION

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain

ELECTRICAL

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC
• Max Power consumption: 450VA @230V

THERMAL SPECIFICATION

• Max ambient temperature: 45°C (113°F)
• Min ambient temperature: -20°C (-4°F)
• Max temperature of the external surface: 90°C (194°F)

SAFETY SPECS

• Minimum distance of illuminated objects 13 meters (42' 8”)
• Minimum distance from flammable materials 0.2 meters (8”)
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans
• F6.3A 250V 5x20 mm – External mains fuse
• F6.3A 250V 5x20 mm – External mains

COMPLIANCE

• CE Marking (in conformity to the following):
  • 2104/53/EU Radio Equipment Directive (RED)
  • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
• UKCA: conforms to UK Regulations:
  • S.I. 2017 N. 1206
  • S.I. 2012 N. 3032
  • S.I. 2021 N. 745
• cMETus Listed:
  • UL 1573:2003
  • CSA C22.2 N. 166: 2015

PACKAGING

• Carton box + Polystyrene
• Carton box + Foam shell (4 positions)
• Flight case + Foam shell (4 positions)

WEIGHT - SIZE

• Weight: 19.48 Kg (42.95 lbs)
• Base dimensions: 365 x 251 mm - 14.4 x 9.9 In
• Height with vertical head (h): 538 mm - 21.2 In
• Distance between two fixtures: 400 mm

ACCESSORIES

• Omega clamps: 2x183102/805 (included)
• ETL Power cord: CAB02B/802 (included)
  *Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
• CRMX antenna extension: ANT004 (optional)
• Flight case (4 positions): CF1048F (optional)
• Foam shell: F21358/001 (optional)
• Safety Chain: 105041/001 (optional)
• Clamp: C21070 (option
