The Emerald L downlighter is a versatile and energy-efficient lighting fixture that is perfect for a variety of applications. With a large beam angle and a choice of different wattages, it is easy to find the right lighting for your needs. The different colour temperatures and CRI values mean that you can perfectly configure the lighting for your space.
15-20-28 & 36 Watt design downlighter.
Typical applications
All possible applications where users want to save on both energy- and maintenance costs by implementing a pure Dutch Design & Made high quality LED Lighting system.
Unique installation flexibility
For installation holes variable from 21-25 cm.
All existing PL & CFL fixtures can be replaced with just one design form. With the variable mounting sizes you are not restricted in any way.
Large beam angle
As a result of the large beam angle, less units per square metre are required, thus resulting in large savings on your investment.
Large choice in versions
4 different Wattages.
5 different colour temperatures.
Different CRI values available.
All possible dimming methods available
Specifications
| Type | Emerald L, Downlighter |

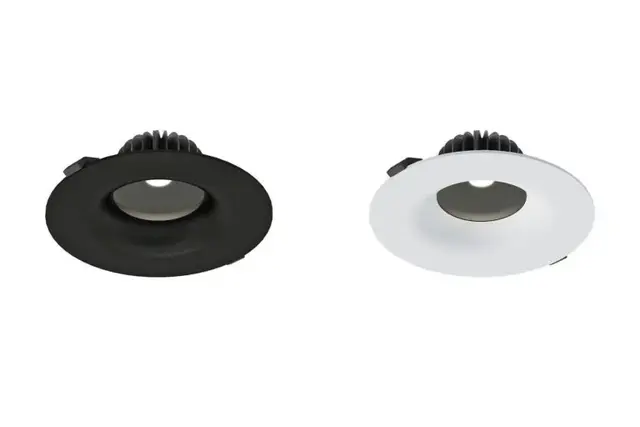

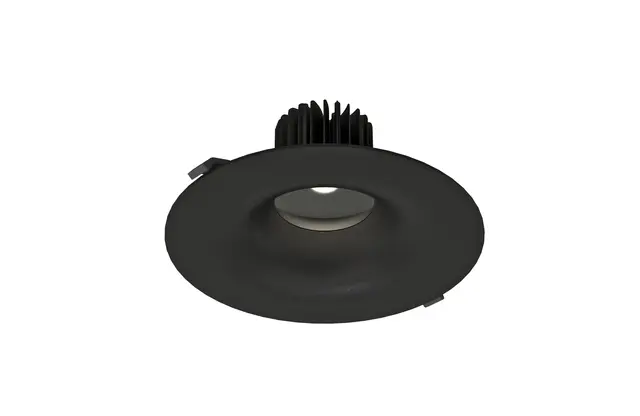

| Colour | Black or white |
| Material | Plastic (PC_ABS V0), anodized aluminium |
| Swivel | 360° horizontal |
| Mounting hole | 21-25 |

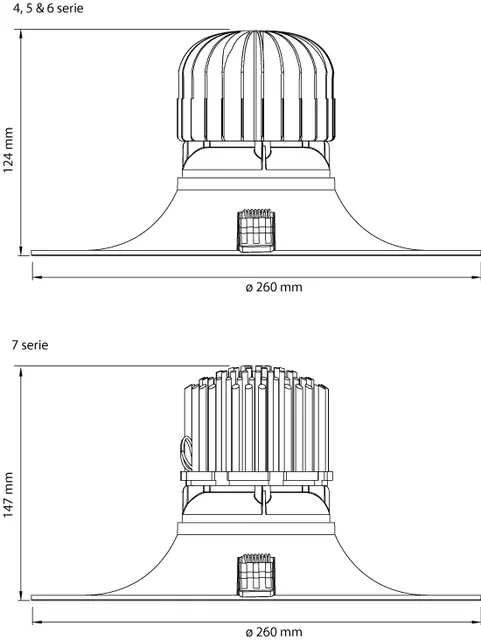

| Installation depth | 180mm (4~6 serie) or 205mm (7-serie) |
|
| Optics | 70º | 83º |
| Light source | High Power LED |
| Light output | 1600 - 4000 lumen |
| CRI | ~90 |
| LED colours | 2500K | 2700K | 3000K | 3500K | 4000K
D2W 1800K-3000K
|
|
| Power consumption | Max. 15 - 36 Watt |
| Drive current | 350mA~900 mA |
| Driver | Driver included | Driver external |
| Dimming | Mains dim | DALI | Casambi | DMX512 |
| Connection | Smart Connect system |
| Cable length | 150 cm |
|
| IP rating | IP 40 |
| Protection class | 3 |
| Certifications | CE |
|
| Lifetime | 50.000 hours |
| LB Value | L90B10 at 50.000h |
| Warranty | 5 years |
|
| Remarks | Highly efficient, very low glare convex lens |
