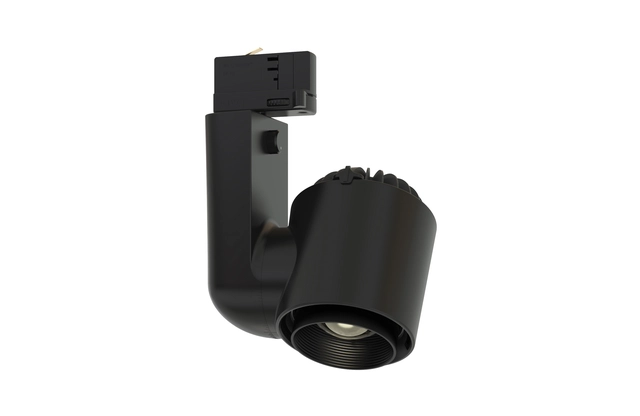

Jade Zoom
The Jade Zoom is a versatile and powerful LED lighting fixture. With a zoom range from 9° to 58° (Bridgelux) or 11° to 67° (Xicato), it is ideal for museum, gallery, or high-end retail lighting. The advanced optical system ensures uniform light quality, while the choice of LED light sources allows for a perfect fit to the lighting plan.
CLS Performance Zoom
Zoom range from 9° to 58°! (Bridgelux)
Zoom range from 11° to 67°! (Xicato)
Unmatched uniform light quality & light output
A very advanced optical system ensures an unmatched uniform light image. Due to the unique CLS DFC lens, the Jade Zoom offers a higher effective light output than other comparable fixtures with zoom capability. The CLS DFC lens is a glass lens with a very high optical purity, combined with some unique features that contribute to a high level of light efficiency.
Large choice of LED light sources
The Jade Zoom is available with a Xicato Artist-, or for CLS a special developed Bridgelux LED light source. The Xicato Artist series is the first choice of many light designers, when it comes to the quality of light. It offers a CRI of >98, with a R9 value of >95 (3000K version)
Large choice in dimming methods
Local dim, DALI, DMX, Casambi Bluetooth and Wireless DMX.

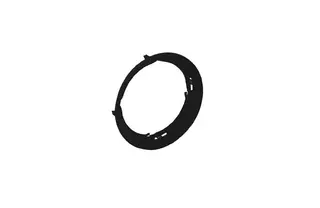

Large choice of accessories
The Jade Zoom Series product line offers many accessories to help designers create the perfect light setting.

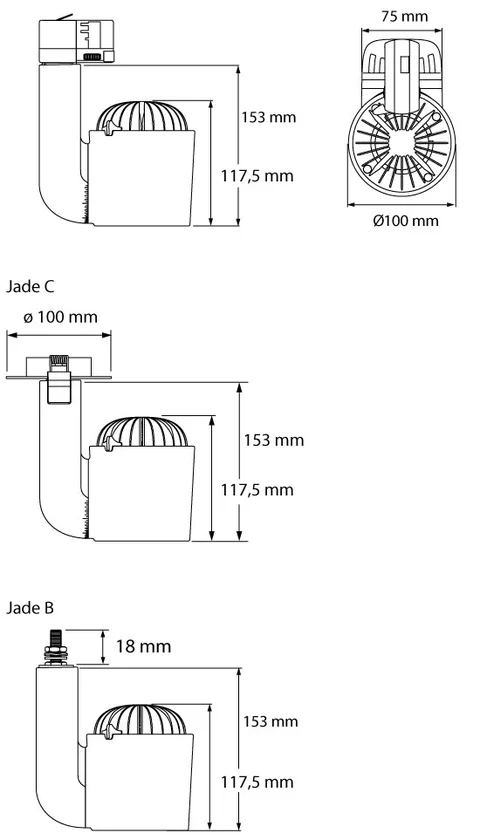

Multiple mounting options
Track mounting with choice in both Global or Eutrac rail adapters.
Ceiling mounting by means of a threaded end. (Jade B Zoom)
Specifications
| Type | Jade Zoom, 25 or 35 Watt track or surface mounted spot |
| Colour | Black, white or grey |
| Material | Anodized or coated aluminium & PC/ABS V0 |
| Weight | 955 gram |
| Swivel | 340° horizontal | 350° vertical |
|
| Optics | 9°- 58° | 11°- 67° |
| Light source | Bridgelux or Xicato |
| Light output | 1500 - 2000 lumen |
| CRI | ~90 or ~98 |
| LED colours | 2700K | 3000K | 3500K | 4000K
|
|
| Power consumption | Max. 25 - 35 Watt |
| Power supply | 180~264 VAC |
| Driver | Driver included | Driver internal |
| Dimming | Mains dim | Local dim | DALI | Casambi | DMX512 | Wireless DMX | Local Dim + Casambi |
| Connection | Track adapter, Global or Eutrac |
|
| IP rating | IP 20 |
| Protection class | 1 |
| Certifications | CE |
|
| Lifetime | 50.000h |
| LB Value | L90B10 at 50.000h |
| Warranty | 5 years |
|

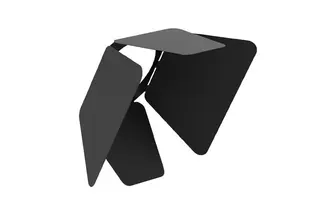

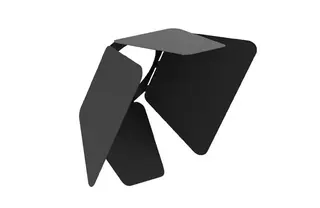

| Accessories | A customizable snoot that can be build up in segments of 2 cm. Rotatable barndoor, Beam shapers and Honeycomb louvre. |
| Remarks | The beam angle can be adjusted from the backside of the fixture. |
