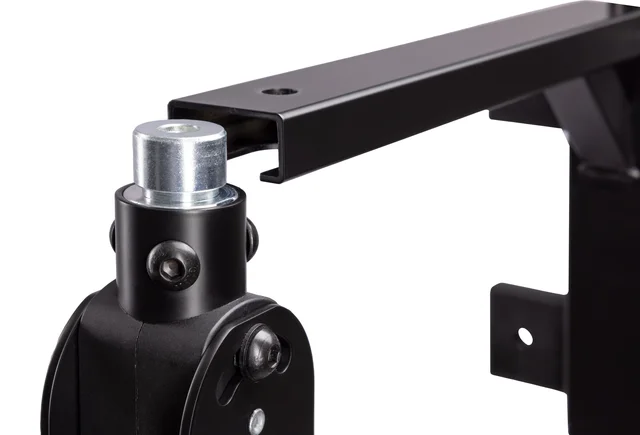

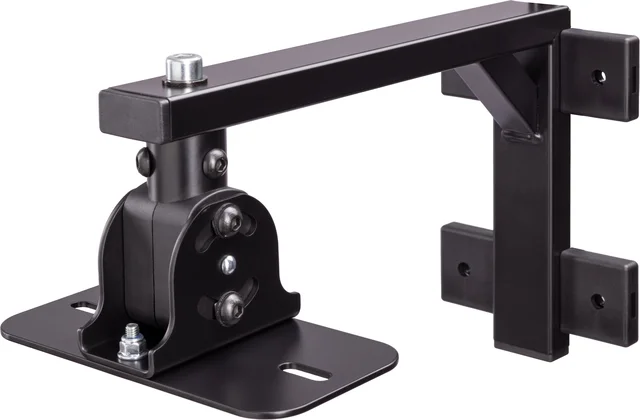

Høyttalerveggfestet gjør at utstyr kan installeres på en vegg. Denne braketten, som er kompatibel med Yamaha-høyttalerne nedenfor, gjør at posisjonen og vinkelen til høyttalerne enkelt kan justeres. Enkel montering ved praktisk innkobling og skruelåsing.
Direkte passform: DBR12, DBR10, CBR12, CBR10, HS8I, HS7I
Krever Yamahas U-brakett: DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, CHR10
| Adjustment: | continuous |
| Angle of inclination: | -45° to 45° |
| Bearing plate: | 180 x 90 mm |
| EAN: | 4016842122936 |
| Weight: | 2.3 kg |
| Material: | steel |
| Max. load capacity: | 25 kg |
| Mounting: | attaches to walls |
| Spacing of holes: | 60 - 70 mm or 115 - 150 mm |
| Swivel: | 360° |
| Type: | black |
| Wall clearance: | 271 mm |
| Special features: | Direct fit: DBR12, DBR10, CBR12, CBR10, HS8I, HS7I Requires Yamaha's U-bracket: DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, CHR10 |
