Intelligent 24-fader LED DMX controller
Suitable for 3 to 6 colour LEDs
24 user colours
24 user chases with up to 99 steps
Manual, Auto run and Sound-controlled mode

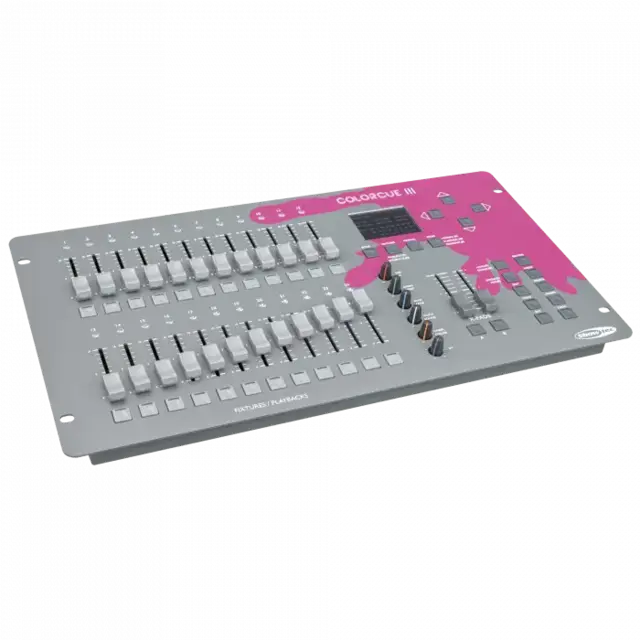

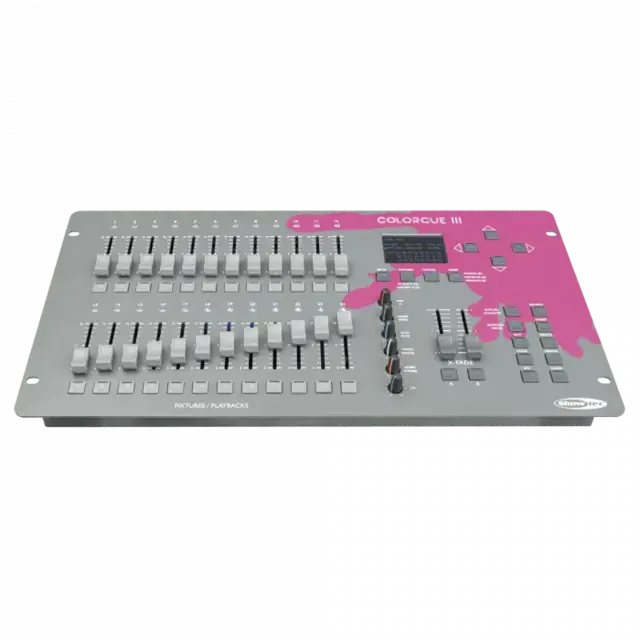

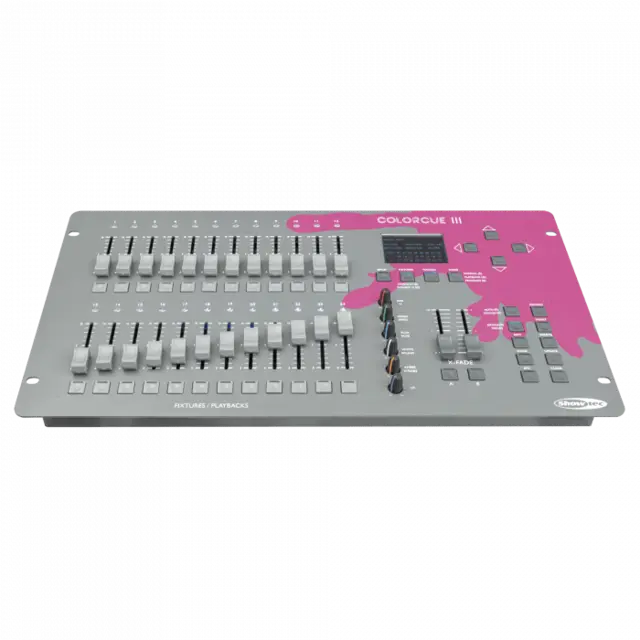

The Showtec ColorCue 3 is an intelligent 24-fader LED DMX controller for easily controlling 3 to 6 colour LED fixtures with up to 144 DMX channels, suitable for any venue. Its 6 potentiometers enable a quick control for various colour engines, from 3-colour RGB to 6-colour RGBWA-UV. The ColorCue 3 comes with a memory button below every fader for smart control over your colours, chases and user settings. Equipped with 2 smart master faders and an intuitive LED display, you can easily control 2 sections and attach fixtures to any of the 24 available fader. For changing colours and effects in a loop, you can create and playback 24 chases with a maximum of 99 steps per chase. The chase can be controlled in either Manual, Auto run and Sound-controlled mode
Specifications
Control and Programming
Control Mode: Built-in Program, Manual, MIDI, Static Dimmer
DMX Channels: 144
Protocols: DMX
Display: LCD
Buttons:44
Faders: 26
Memories: 1000
Electrical Specifications and Connections
Power Supply: 12 V DC
Power Consumption: 15 W
Power Connector In: Low Voltage DC plug

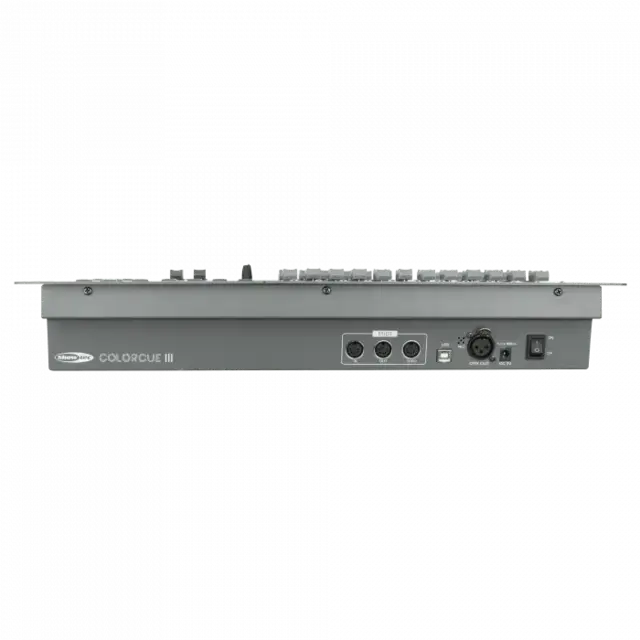

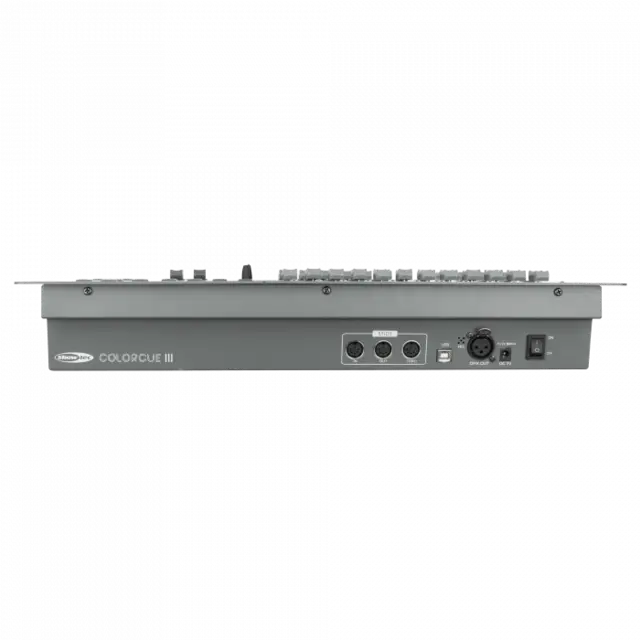

DMX Connector Out: XLR 3P
Audio Triggers: 1
Mechanical Specifications
Length (mm): 482 mm (18.976?)
Width (mm): 261 mm (10.276?)
Height (mm): 80 mm (3.15?)
Installation Depth (Excl. Connector): 80 mm (3.15?)
Weight: 3.6 kg (7.937 lb)
Rack Units:6 U
IP Rating: IP20 (indoor use only)
Housing: Metal
Colour: Gray, Magenta
Product Properties
LED Indicators: Operation mode, Output level
Thermal Specifications
Maximum Ambient Temperature: 40 °C (104 °F)
Included Items
Included Cables: None
Included Accessories: Adapter
