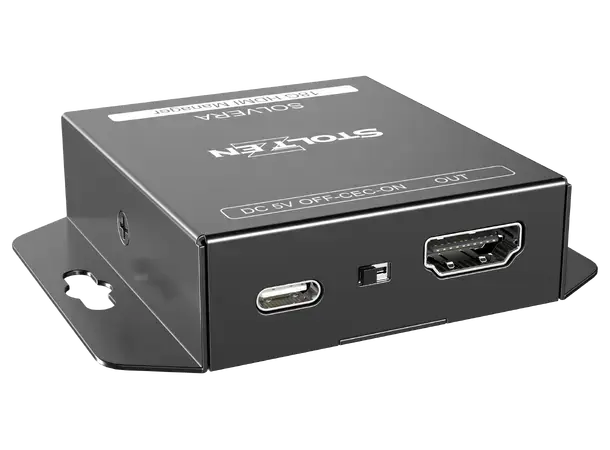

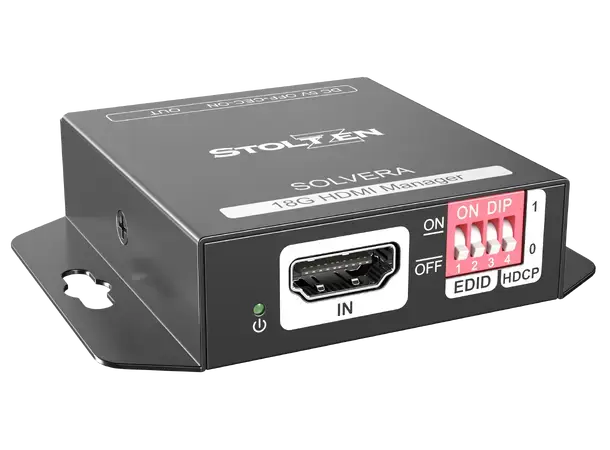

Stoltzen Solvera - EDID, HPD & HDCP Fix
A Problem Solver for HDMI Installations
Inspired by the Latin word solvere (to solve), we present the Stoltzen SOLVERA.
Designed to simplify installation issues, this compact device boasts a range of intelligent features:
- EDID Manager
- HDCP Manager
- 5V Manager
- CEC Blocker
Key Features:
- Supports up to 4K@60 4:4:4 and HDCP2.2
- EDID & HDCP management
- Powered by HDMI or USB-C
- Disables 5V when source lacks TMDS
- CEC block switch
Recommend using a power source to reduce connection time. USB A-C or C-C cables available under accessories
Specifications
| Video Input |
|---|
| Input | 1x HDMI 2.0 |
| Input Connector | 1x Female type-A HDMI |
| HDMI Input Resolution | Up to 4K@60 4:4:4 |
| Video Output |
|---|
| Output | 1x HDMI 2.0 |
| Output Connector | 1x Female type-A HDMI |
| HDMI Output Resolution | Up to 4K@60 4:4:4 |
| General |
|---|
| Bandwidth | 18Gbps |
| Power Supply | 5V 1A |
| Power Consumption | 2.4W (MAX) |
| Dimension (W*H*D) | 54x18x60mm |
| Net Weight | 85g |
EDID Settings
| Switch | Resolution | Audio |
|---|
| 000 | Passthrough | |
| 001 | 1080p | LPCM |
| 010 | 1080p | DTS/Dolby |
| 011 | 3840x2160@30Hz HDR | LPCM |
| 100 | 3840x2160@30Hz HDR | DTS/Dolby |
| 101 | 3840x2160@60Hz HDR | LPCM |
| 110 | 3840x2160@60Hz HDR | DTS/Dolby |
| 111 | User defined EDID | |
