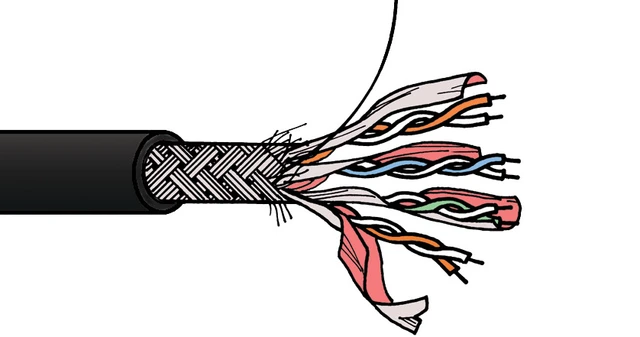

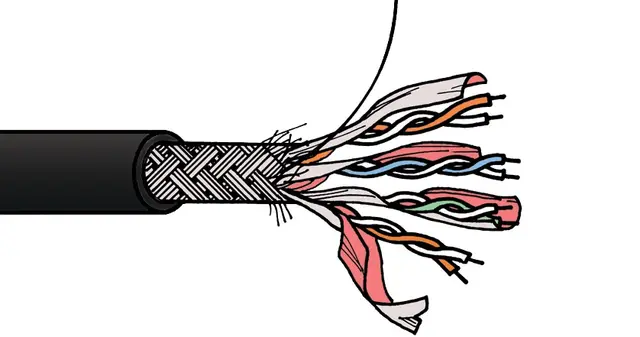

Increasing use of network and data cables between audio and video devices on location calls for a Category 7 cable that is designed specifically for deployable use. Basic Category 7 cable is a relatively inflexible installation cable, and even the slightly more flexible patchcord type still has very poor handling characteristics in deployed (as opposed to patching) applications. This Category 7 cable has been designed specifically for the professional audio and video user, and is intended to handle like a typical microphone cable. It has recently been approved by Waves Audio for use with their Waves Audio Soundgrid systems. It has an extra-flexible individually screened 4 pair core structure with an overall braid screen that maintains Category 7 performance, then a rugged polyurethane outer jacket, to give superb flexibility and handling characteristics.
It is suitable for use with both standard RJ45 connectors (round entry version), the Neutrik Ethercon (type NE8MX6-T) and most other ruggedised RJ45 designs, or any other connector with a suitably sized entry gland. The cable is also suitable for DMX512 applications.
The Category 7 standard provides performance up to 1000MHz, and is suitable for Gigabit Ethernet, 1000Base-T and other high speed applications, as well as analogue and digital audio. Category 7 defines more stringent specifications than those applicable to Category 6/6A, particularly in crosstalk between pairs.
Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.
Technical Specification:
| Conductors: | 7/0.16mm (0.14 sq.mm) bare copper |
| Insulation: | Foamed polyethylene, 1.0mm O.D., according to Category Cable Colour Codes |

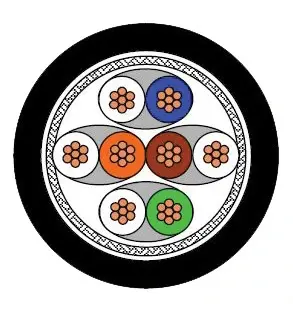

| Lay-up: | Two insulated conductors twisted together, pairs twisted together. |
| Pair screens: | Aluminium laminated plastic foil |
| Overall screen: | Tinned copper braid, 5.1mm O.D. |
| Overall jacket: | Flexible polyurethane, 6.4mm O.D. |
| Impedance: | 100 +/- 15 ohms |
| Minimum bending radius: | 52mm |
| Attenuation: | 9dB/100m (10MHz) |
| 26dB/100m (100MHz)) |
| 41dB/100m (250MHz)) |
| 67dB/100m (600MHz) |
| 89dB/100m (1000MHz) |
| Near end crosstalk: | 100dB (10MHz) |
| 100dB (100MHz) |
| 95dB (250MHz) |
| 90dB (600MHz) |
| 90dB (1000MHz) |
| Weight: | 3.5kg/100m |
| Reel length: | 500 metre reels |
| Cut lengths: | Available in any multiple of 1 metre |
