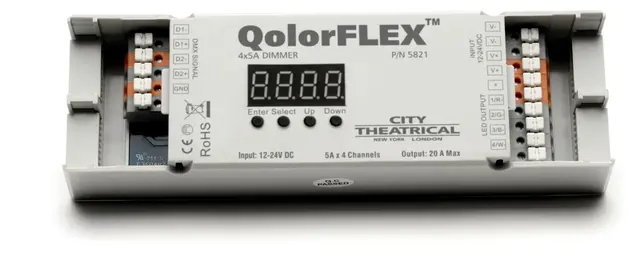

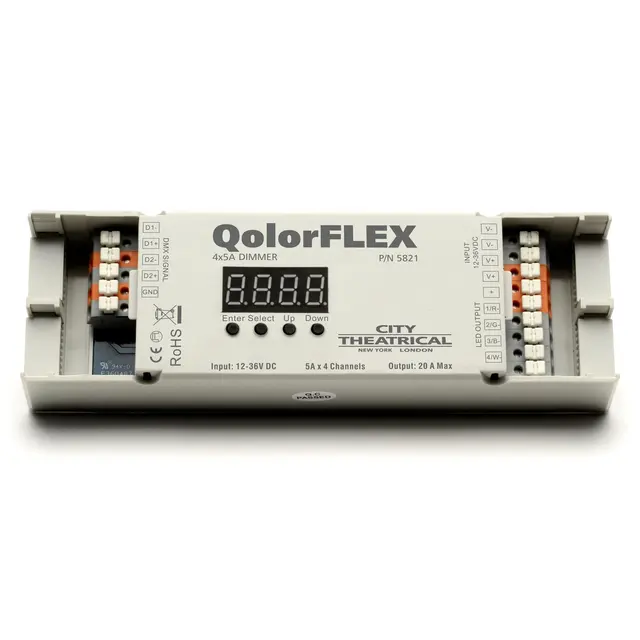

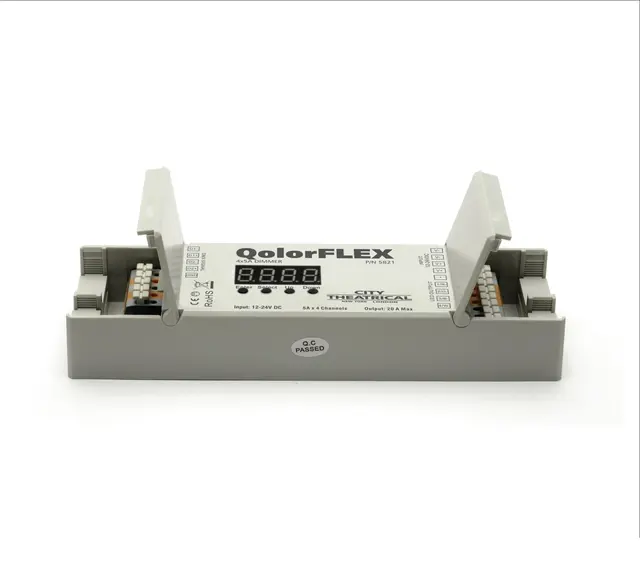

City Theatrical's QolorFLEX® 4x5A Dimmer (P/N 5821) is a low voltage, constant voltage dimmer, and can control a full 20A of LED tape spread over four channels of 5A each. The unit is easily surface mounted and has spring contact terminal blocks for all electrical and DMX connections.
The QolorFLEX 4x5A Dimmer includes an easy-to-read onboard display and four button user interface allows setting DMX addresses, setting quantity of DMX channels, selecting 8- or 16-bit output resolution, setting PWM frequency (500Hz to 30KHz), setting output dimming curve values for matching the dimming curves of other dimmers in use and setting the device’s operating profile.
The QolorFLEX 4x5A Dimmer is RDM capable. The maximum current load per channel is 5A with a maximum device output of 20A.
The QolorFLEX 4x5A Dimmer requires an external power supply, providing input voltage of 12-24VDC, to suit the LED tape you are using. For indoor use.
