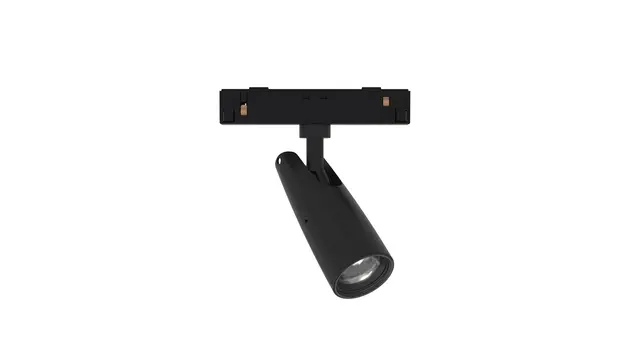

Focus G4 T DMX/Roto Dim®

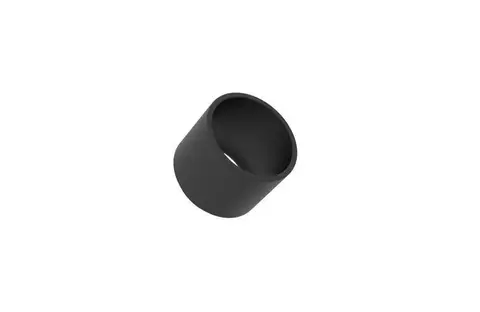

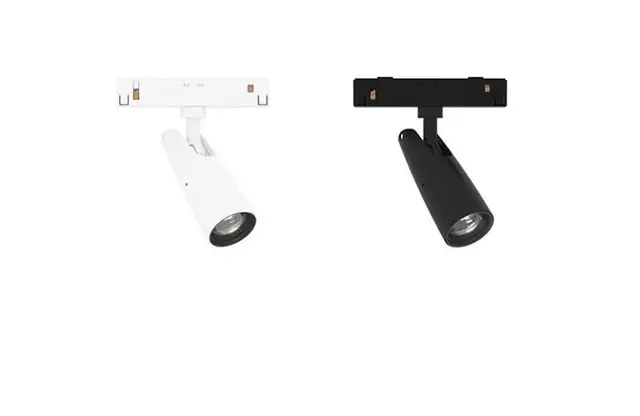

The Focus G4 is a powerful zoom lighting fixture that can be controlled via DMX512. With a 10°-70° stepless zoom range and a uniform soft edge light beam, it is perfect for any application that requires precision lighting. It also features white and black housing options, an accessory holder, and customizable snoot to ensure that you get the perfect look for your space.

Excellent colour rendering

Lighting designers have the choice of several light sources. There is a choice of extra-warm white (2700K), warm white (3000K), fresh white (3500K) and neutral white (4000K). With a CRI of ~95, the colour rendering is excellent. Other light colours are available on request, subject to minimum order sizes.

CLS Performance Zoom

The CLS Performance Zoom system allows users to quickly and easily set the light’s opening angle in a range from 10º to 70º.

Horizontal & vertical locking

All Focus variants are fitted with stepless horizontal and vertical fixture locking. This prevents third parties from inadvertently changing the position of the luminaire after the luminaire has been accurately aligned, so that the lighting setting is no longer in accordance with the original lighting plan.

DMX512 & 24V

An extremely compact Stucchi 24V single-phase rail, equipped with a data bus function, provides both the voltage and the digital control signal via DMX512.
DMX512 is worldwide the most used protocol for accurate programming of complete multimedia shows and exhibitions.

RDM – Remote Device management

In combination with a RDM-compatible DMX controller/tester you can also adjust the settings of the light fixtures remotely via the DMX line. Think of the start address, static value and other settings that are available in the fixture.

Individual addressing and programming

Each luminaire can be addressed individually through a quick and easy operation. Thanks to the individual address, it is possible to programme each luminaire statically or dynamically and to adjust the light intensity.

Memory-on-board function

The Focus is equipped with a so-called memory-on-board function. After programming a dimming position by means of the DMX signal, the value is stored in the built-in memory. In the unlikely event that the control signal fails, the fixture will still display the correct light intensity.
