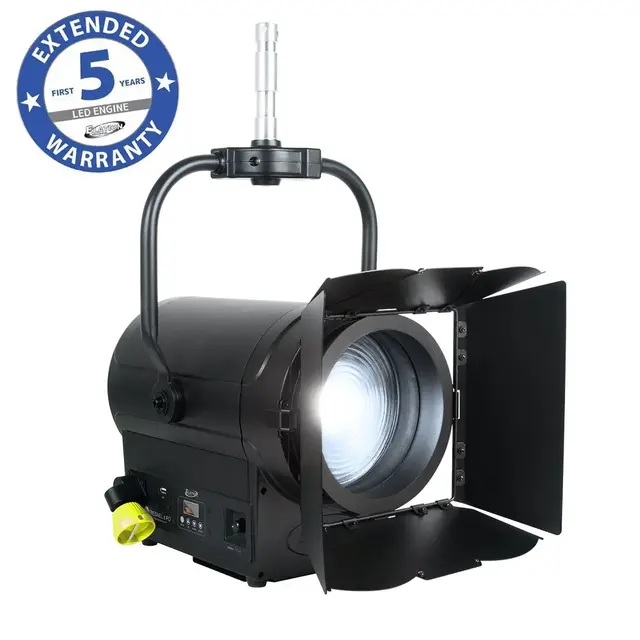

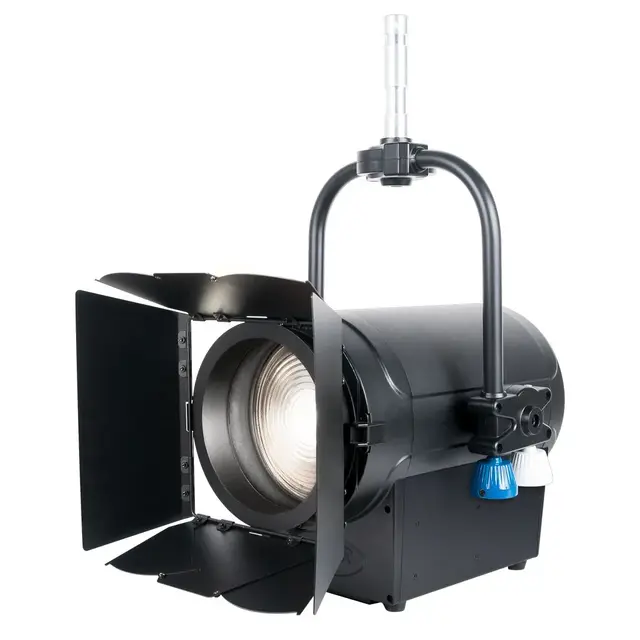

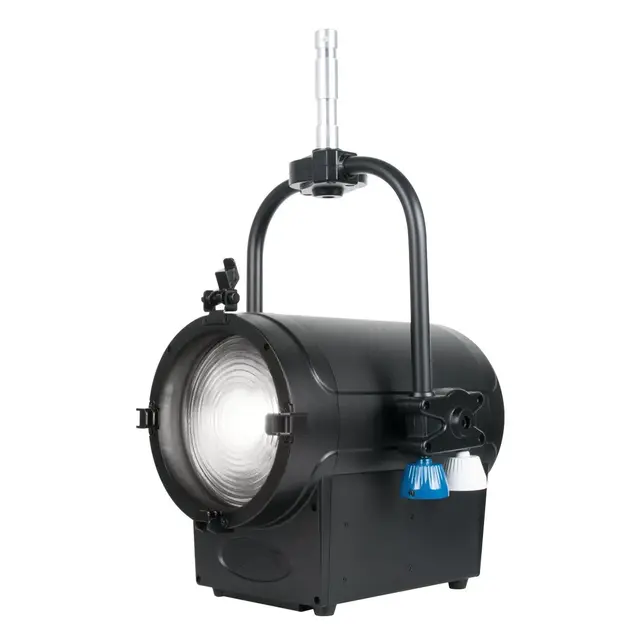

The KL Fresnel 8 CW PO™ is a pole operable, cold-white, LED Fresnel light with 350W 5,600K Cool
White LED engine useful for crisp, daylight white light projection.
The luminaire shall be a pole operable, cold-white luminaire with a 350W 5,600K LED engine. The
luminaire shall be pole operable to allow for easy pan, tilt and zoom adjustments. It shall operate
silently and flicker-free with an average LED life of 50,000 hours. It shall be capable of emitting
14,000 total lumens and have a CRI >97. The luminaire shall contain an 11° - 56° manual zoom. Full
range dimming shall be manually or DMX controllable. The luminaire shall house rotating 8-leaf barn
doors and include a gel frame holder. The luminaire shall include a high-speed strobe, be capable of
0-100% dimming and include variable dimming curves. Operation via DMX and RDM protocols shall
be possible and the luminaire shall include a 4-button and dial control panel with LCD menu display.
LED refresh rate shall be adjustable from 900 – 25,000Hz. 3-pin and 5-pin DMX In/Out, a USB
firmware service port and Locking Power In/Out shall be included. Max power consumption shall be
360W and a multi-voltage universal auto switching power supply shall be included. The unit shall
measure 445mm x 328mm x 456mm (LxWxH) and weigh 12.7 kg.
FEATURES
5,600K Cool White LED Fresnel Luminaire
350W Single Source LED
Pole Operation for Pan and Tilt plus Zoom
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
11° - 56° Wide Manual Zoom
Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
350W Cool White LED Engine
14,000 Total Output Lumens, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Up to 14,000 Total Lumen Output
16,762 LUX 1,557 FC @ 3m (9.8’) (Min. Zoom)
1462 LUX 136 FC @ 3m (9.8’) (Max. Zoom)
Zoom Range 11° - 56°
Beam Angle 11° - 56.2°
Field Angle 17.9° - 77°
EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
5,600K Cool White LED
CONTROL / CONNECTIONS
5 DMX Channels Modes (1 / 2 / 3 / 4 / 5)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Dimming Control
4 Button and 1 Dial Control Panel
Manual and DMX Controlled Dimming
180° Reversible LCD Menu Display
USB Firmware Service Port

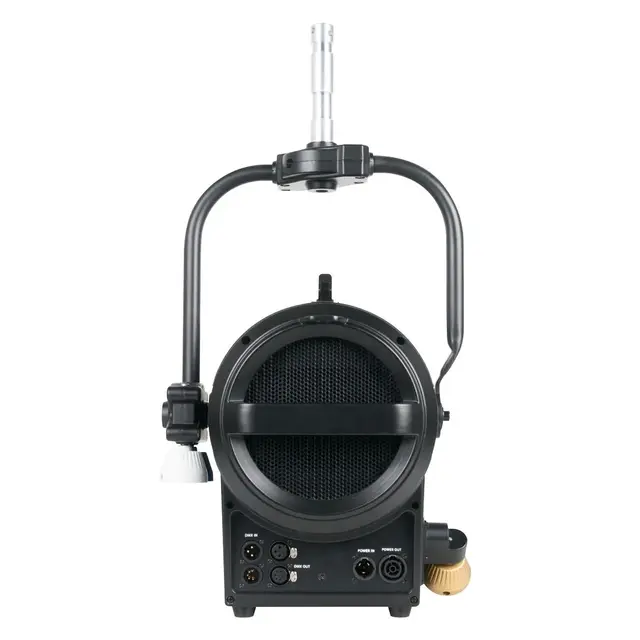

Locking 3/5pin XLR DMX In/Out and Power In/Out
SIZE / WEIGHT
Length: 445mm (17.5”)
Width: 328mm (12.9”)
Vertical Height: 456mm (18.0”)
Weight: 12.7 kg (28.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
360W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V
INCLUDED ITEMS
Gel frame, Rotating Barn Doors & 28mm Junior Pin / Spigot
