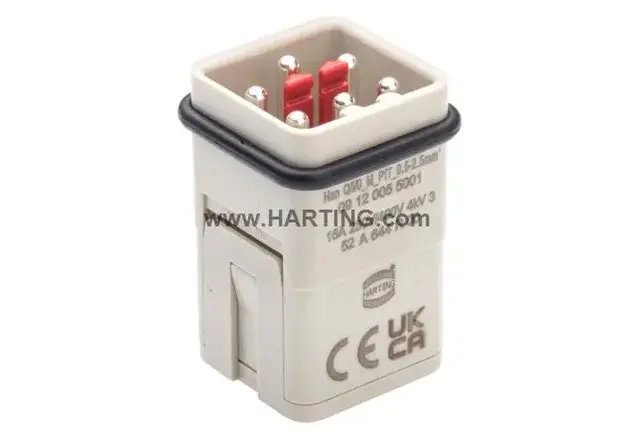

Product details
Identification
| Category | Inserts |
|---|
| Series | Han® Q |
|---|
| Identification | 5/0 |
|---|
Version
| Termination method | Push-In |
|---|
| Gender | Male |
|---|
| Size | 3 A |
|---|
| Number of contacts | 5 |
|---|
| PE contact | Yes |
|---|
Technical characteristics
| Conductor cross-section | 0.5 ... 2.5 mm² |
|---|
| Rated current | ? 16 A |
|---|
| Rated voltage conductor-earth | 230 V |
|---|
| Rated voltage conductor-conductor | 400 V |
|---|
| Rated impulse voltage | 4 kV |
|---|
| Pollution degree | 3 |
|---|
| Insulation resistance | >1010 O |
|---|
| Limiting temperature | -40 ... +125 °C |
|---|
| Mating cycles | = 500 |
|---|
Material properties
| Material (insert) | Polycarbonate (PC) |
|---|
| Colour (insert) | RAL 7032 (pebble grey) |
|---|
| Material (contacts) | Copper alloy |
|---|
| Surface (contacts) | Silver plated |
|---|
| Material flammability class acc. to UL 94 | V-0 |
|---|
| RoHS | compliant |
|---|
| ELV status | compliant |
|---|
| China RoHS | e |
|---|
| REACH Annex XVII substances | Not contained |
|---|
| REACH ANNEX XIV substances | Not contained |
|---|
| REACH SVHC substances | Not contained |
|---|
| California Proposition 65 substances | Not contained |
|---|
| Fire protection on railway vehicles | EN 45545-2 (2020-08) |
|---|
| Requirement set with Hazard Levels | R22 (HL 1-3) |
|---|
| R23 (HL 1-3) |
