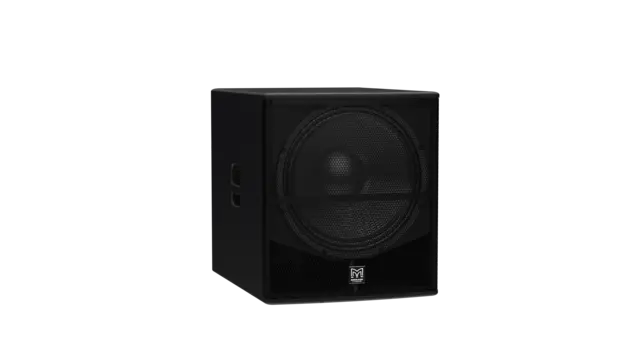

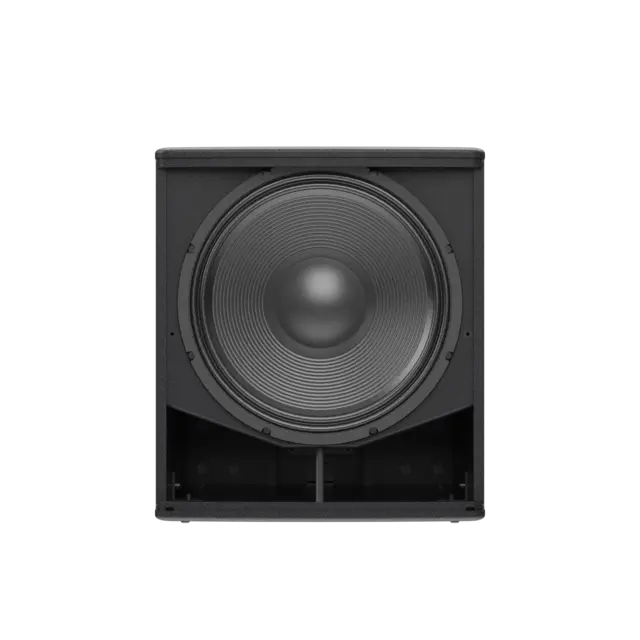

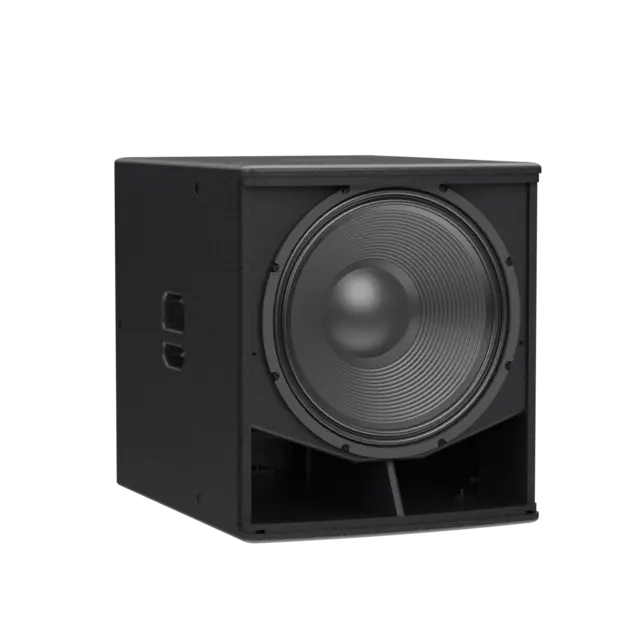

Q118 features an 18” (460 mm) driver with a 4” (100 mm) voice coil, housed in a durable plywood enclosure finished in tough black paint. A perforated, impact-resistant steel grille protects the driver, while slot ports enhance efficiency and minimize noise turbulence.

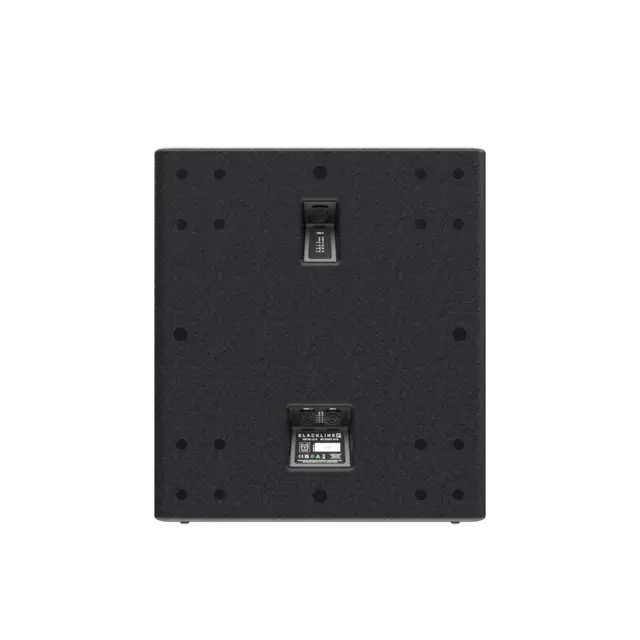

Designed for versatile deployment, Q118 can be used individually, stacked or flown using integral M10 inserts. It also includes an M20 1.4” (35 mm) pole-mount fitting for seamless integration with other loudspeakers in BlacklineQ series. There are two signal link outputs—one positioned at the top and one at the bottom of the enclosure when oriented vertically. This allows for flexible, discreet and tidy signal connections to other BlacklineQ loudspeakers, regardless of setup.

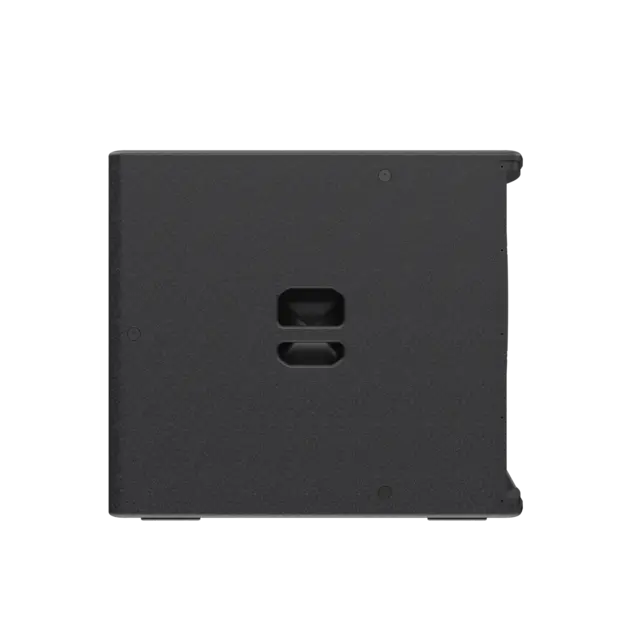

Ergonomic side handles ensure easy handling and rubber feet on the base align with top-surface recesses to provide secure and stable stacking. A castor kit is available as an optional accessory.

When paired with BlacklineQ Series full-range systems, crossover and EQ functions can be managed via the DX0.4, DX0.6 or DX4.0 system controllers, or the onboard DSP of an iKON amplifier.

Blackline Q118 is a compact, high-performance subwoofer designed for use with Blackline Q Series full-range loudspeakers. It extends the system’s low-frequency response down to 38Hz and delivers exceptional impact, with a Peak SPL of 136dB (142dB for crest factor 4).

Features

• Compact, direct-radiator subwoofer
• 1 x 18” (460mm) driver with 4” (102mm) voice coil
• Peak SPL of 136dB (142dB for crest factor 4)
• Durable plywood enclosure
• Slot ports for reduced air noise
• Perforated steel grille
• M20 / 1.4” (35mm) pole-mount socket
• 8O nominal impedance
• Integral ergonomic handles
• Rebate recesses for stable vertical stacking
• M10 flying inserts
• Fittings for optional castors
• Three NL4 connectors

Applications

• Portable sound reinforcement
• Live music clubs
• Bars and restaurants
• Nightclubs
• Corporate AV events and conferences
• Weddings and parties
• Secondary stages at festivals
• Houses of worship, leisure centres and retail outlets
