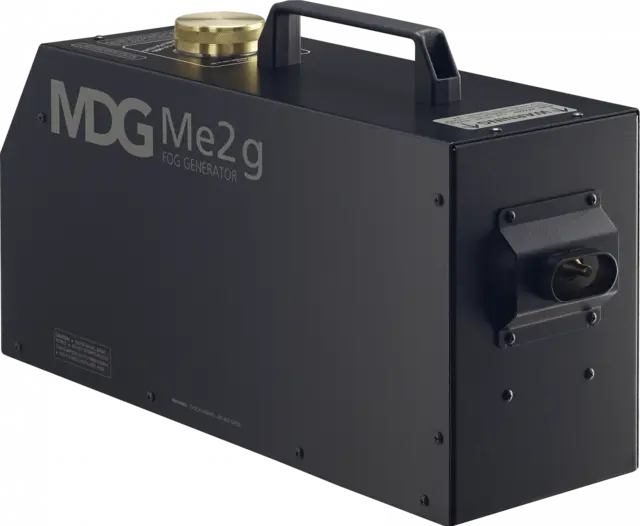

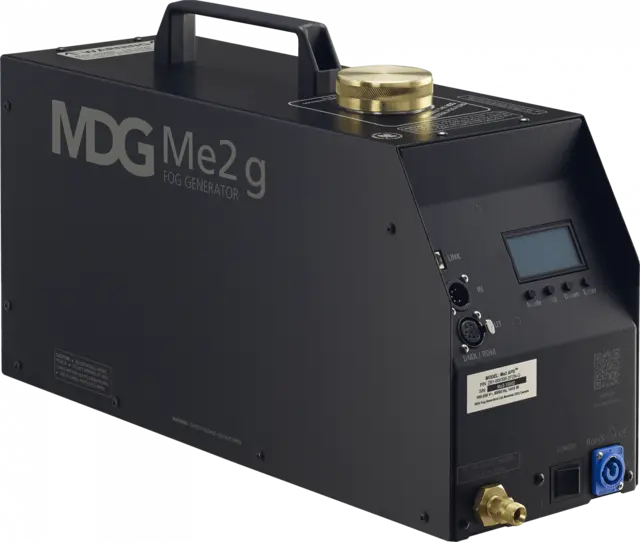

Me2

FOG GENERATOR

MEET Me2, The POWERFUL TWIN

Me2 is the more powerful twin of the Me1, housed in the same size chassis but with twice the power (and two nozzles)

Features

• Variable fog output

  0-100% fog output control from your DMX/RDM device, or direct local control.

• Fluid consumption

  At maximum output (2.76 bar / 40 psi) Me2 uses only 2 L (0.53 US gallon) of fluid per hour.

• 100% duty cycle

  At all output levels Me2 produces a high-quality, consistent fog as long as there is fluid and gas.

• Numerous control options

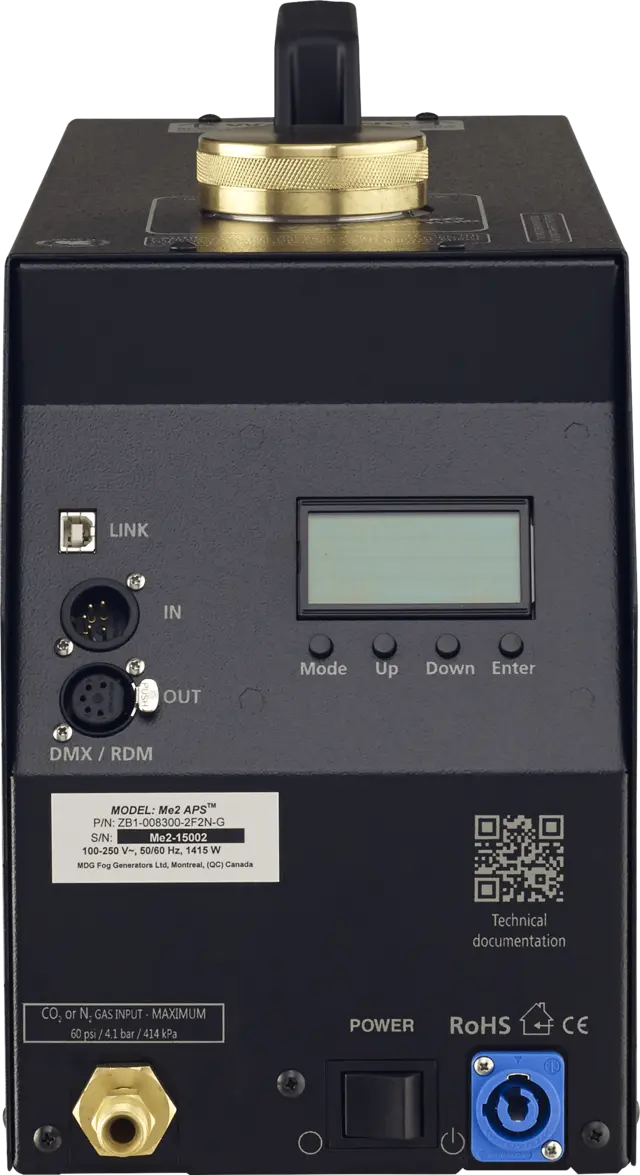

  4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

• APS™ (Automatic Purging System)

  This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.

• Dual fog output

  With its two nozzles, the maximum fog output is 200 m3 (7,063 ft3) per minute.

Specifications

Maximum fog output

200 m3 (7,063 ft3) per minute

Fluid consumption

2 L (0.53 US gallon) per hour at 2.76 bar/40 psi

Gas type

CO2 or N2

Gas consumption

2.68 kg (5.90 lb) per hour at 2.76 bar / 40 psi

Control

4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.

Reservoir capacity

2.5 L (0.66 US gallon)

APS™ (Automatic Purging System)

Standard feature

Fog colour

Pure white

Particle size

0.5 - 0.7 micron

Warm-up time

8 minutes (maximum)

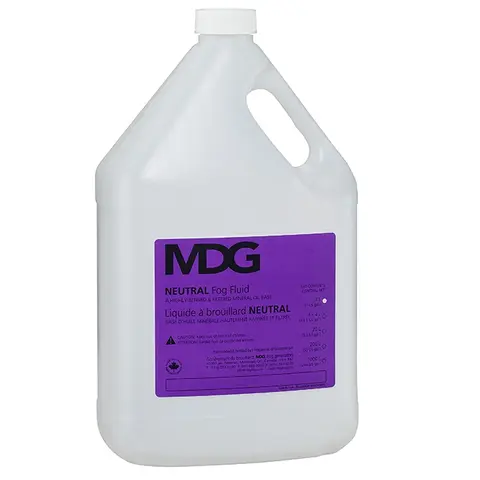

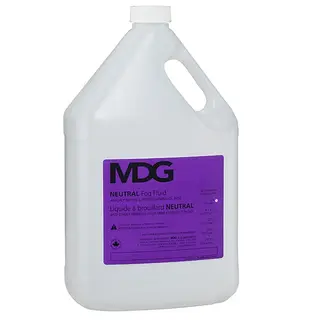

Fluid type

MDG Neutral

Voltage

100 - 250 VAC, 50/60 Hz single phase

Power consumption

1,415 W

Dimensions

Length

61 cm (24”)

Width

18 cm (7”)

Height

30 cm (12”)

Weight

16.62 kg (35 lb)

Shipping weight

30.12 kg (64 lb) with flight case

Approval

CB, CSA and UL Certified. CE Declaration
