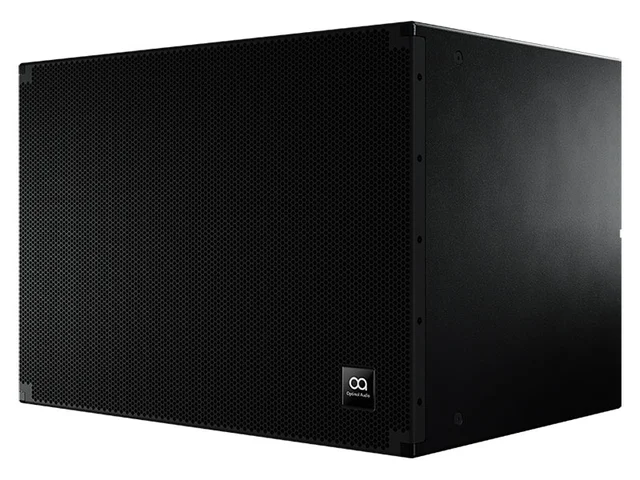

Optimal Audio SUB18-B

Optimal Audio SUB18-B

Optimal Audio SUB18-B

Optimal Audio SUB18-B

Varenr: 121157

Alt. varenr: SUB18-B

eks. mva.12 387,-

-+

Bestilles opp ved ordre

Beskrivelse
Lenker & Dokumenter

TYPE	Sub-bass loudspeaker
FREQUENCY RESPONSE (with preset)	42Hz-150Hz +/- 3dB -10dB @ 36Hz
DRIVERS	LF: 18” (460mm)
RATED POWER	800W (AES) 3200W (peak)
NOMINAL IMPEDANCE	8O
SENSITIVITY (1W/1m)	101dB (Half Space)
MAXIMUM SPL	130dB (cont) 136dB (peak) (Half Space)
ENCLOSURE	Plywood
FINISH	Black Textured Paint
PROTECTIVE GRILLE	Perforated steel

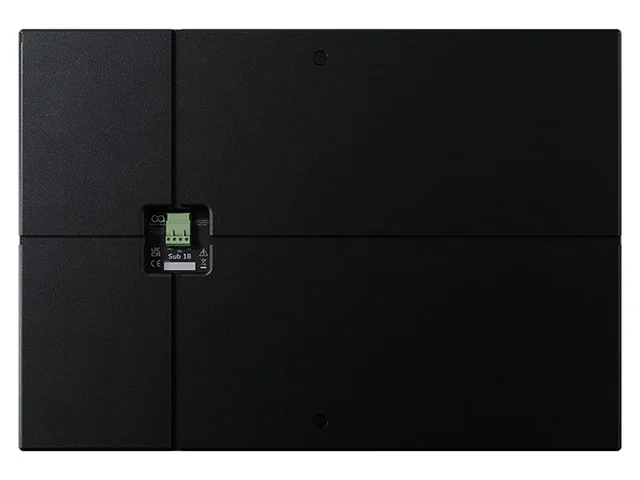

CONNECTORS	Euroblock type
PIN CONNECTIONS (INPUT)	4 pin Euroblock with link out
FITTINGS	12 x M8, Inset bolts
DIMENSIONS	(W) 756mm x (H) 530mm x (D) 544mm (W) 29.76” x (H) 20.86” x (D) 21.42”
WEIGHT	47.0kg (103.6 lbs)

Produsentens Nettside

OptimalAudio-Sub-UserGuide.pdf Sub18-Datasheet.pdf
