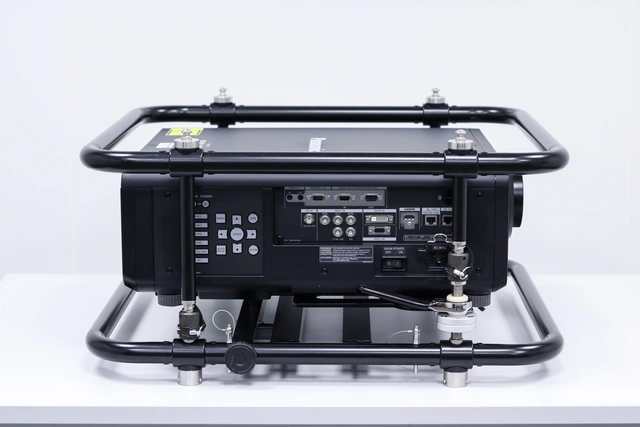

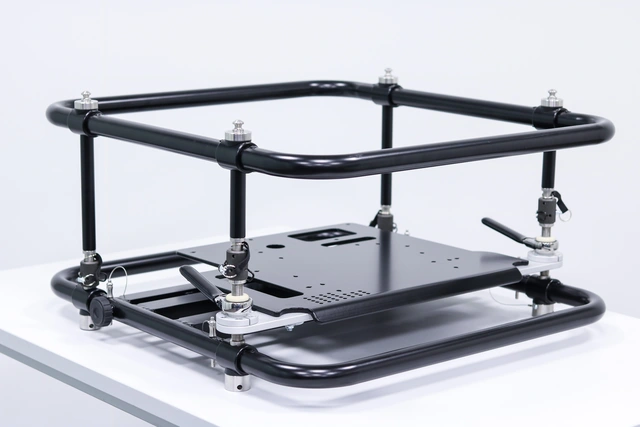

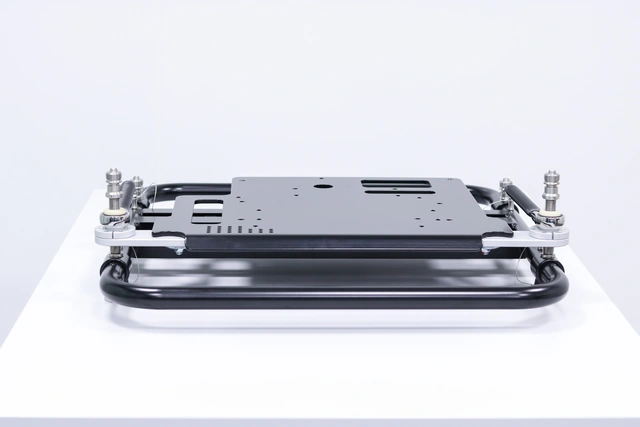

Rental frames for 1-Chip DLP Projectors

Convertible design that makes it easy to remove the upper part
of the frame without additional tools when using ultra-short
throw lenses
· Full stacking compatibility with previous frames
with almost identical outer dimensions
· Built-in galvanic insulation from the projector housing to the
trussing - no need for additional plastic washers to avoid
electrical problems
· Makes mounting the projector in the frame simpler and enables
you to adjust the projector more precisely when inside the frame
· DGUV V17 verified

Dimensions (W x H x D) 650.5mm x 353.5mm x 683mm
Weight 13.4kg (Frame only)
Possible orientation Landscape, Portrait, Vertical down*1
Maximum stacking Ceiling mount: 3 (with TH-SHORT-150-8) Ceiling mount: 2 (with PF-UNI-CLP5030) Ceiling mount: 1 (with TH-SHORT-60-6) Table mount: 3
Maximum projector weight 35kg (incl Lens)
Compatibility PT-REQ12 Series, PT-REZ12 Series, PT-RZ690, PT-RZ790, PT-RZ990, PT-RZ120
Note *1 depending on the installation there might be additional accessories necessary
