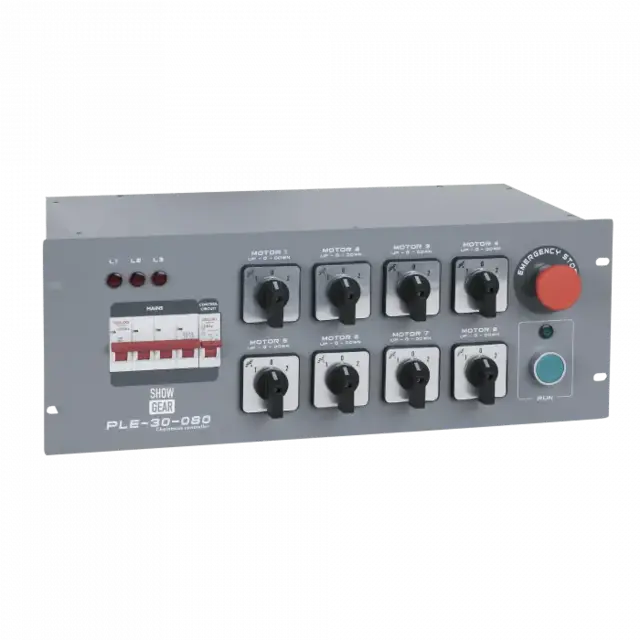

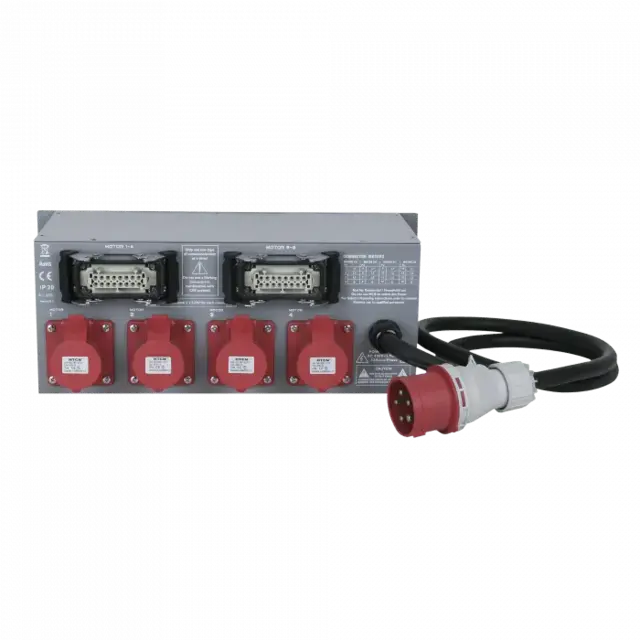

The Showgear Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. Each of the 8 hoists can be selected individually to go up or down or to be deselected. On the backside the unit has 4 x 4-pin CEE connectors as well as 2 pieces of 16-pin multipin to connect a break/out box.

Specifications

Electrical Specifications and Connections

Power Supply: 400 V AC 3 Phase

Power Connector In: CEE5P 32 A

Power Connector Out: CEE4P 16A, HAN16 Out

Cable Length: 1 m

MCB Rated Current: 16 A

MCB Class: Class D

Product Properties

LED Indicators: Power

Mechanical Specifications

Housing: Metal

Finish: Powder Coating

Colour: Gray

Height (mm): 178 mm (7.008?)

Width (mm): 482 mm (18.976?)

Depth (mm): 278 mm (10.945?)

Weight: 10.5 kg (23.149 lb)

Rack Units: 4 U

Flightcase Size: 19"
