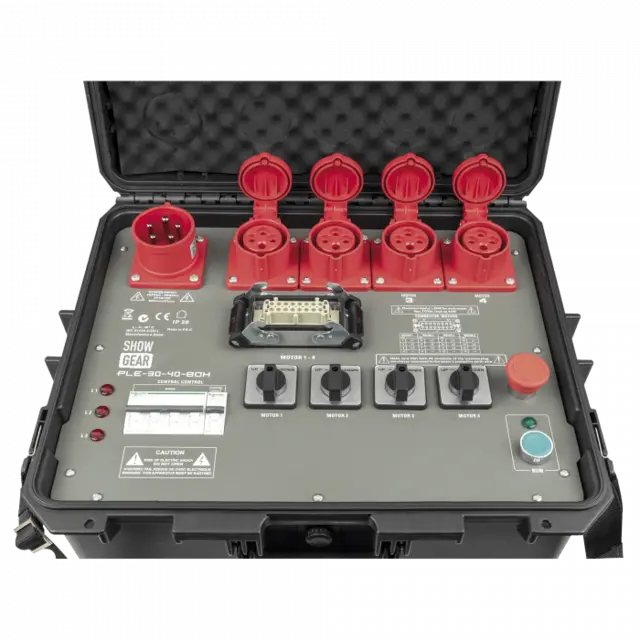

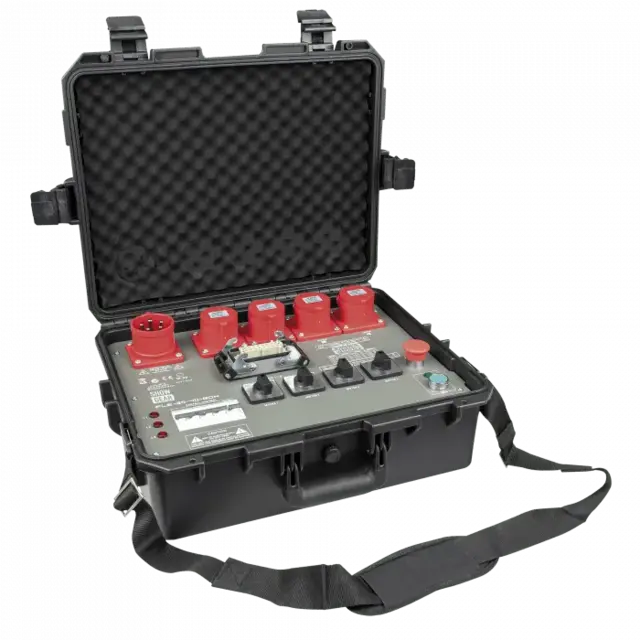

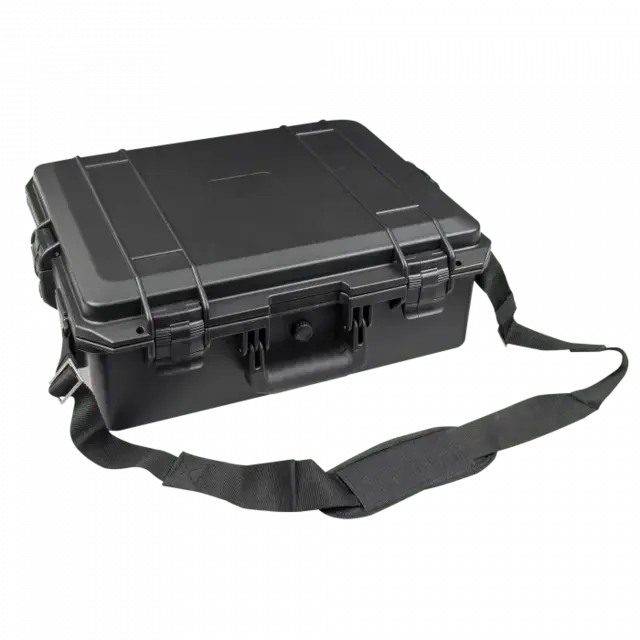

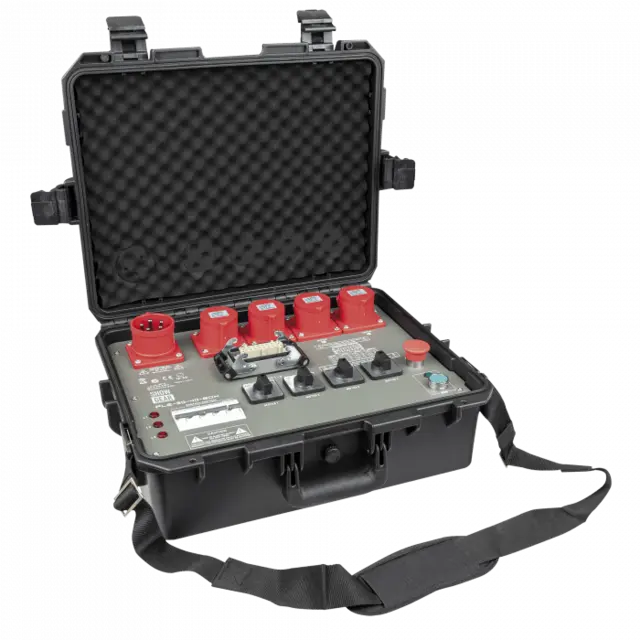

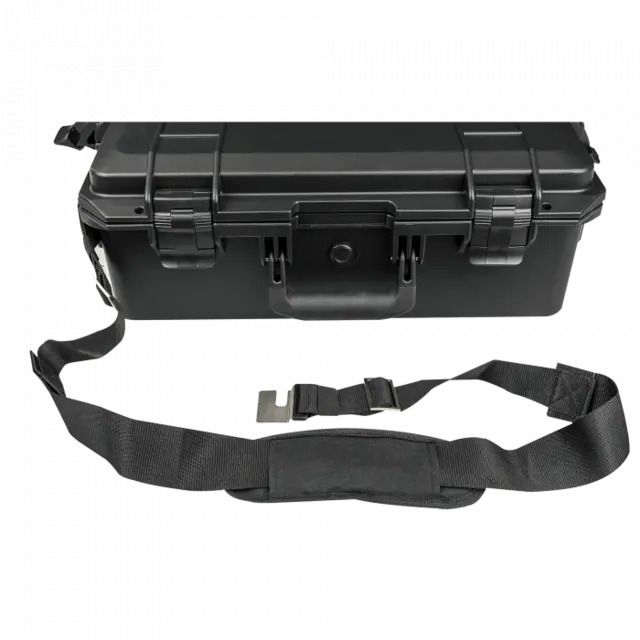

The Showgear Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. Each of the 4 hoists can be selected individually to go up or down or to be deselected. The controller is mounted in an strong and convenient ABS case.

Specifications

Electrical Specifications and Connections

Power Supply: 400 V AC 3 Phase

Rated Current (A): 10 A

Power Connector In: CEE5P 32 A

Power Connector Out: CEE4P 16A, HAN16 Out

MCB Rated Current: 10 A

MCB Class: Class D

RCCB Class: C

Product Properties: LED Indicators

PowerMechanical Specifications

Housing: Plastic

Colour: Black

Length (mm): 550 mm (21.654?)

Height (mm): 220 mm (8.661?)

Width (mm); 465 mm (18.307?)

Weight: 11.75 kg (25.904 lb)
