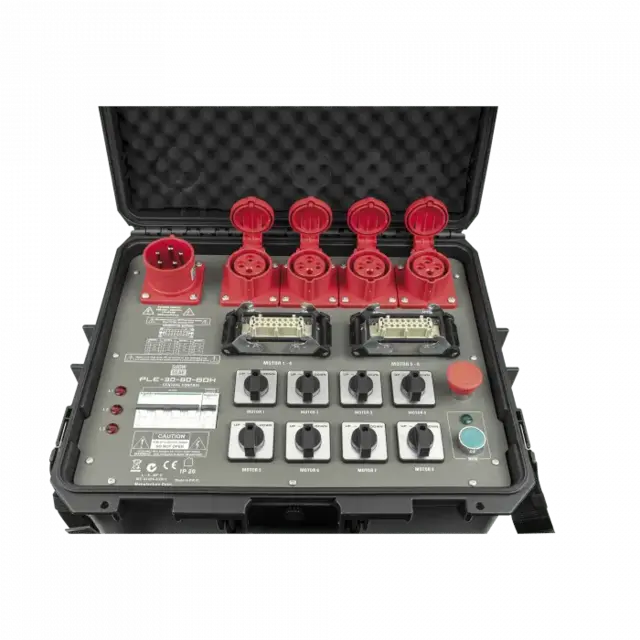

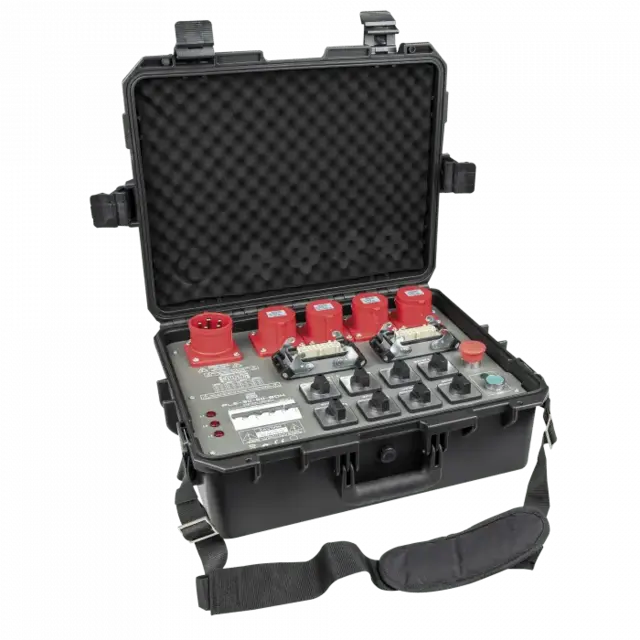

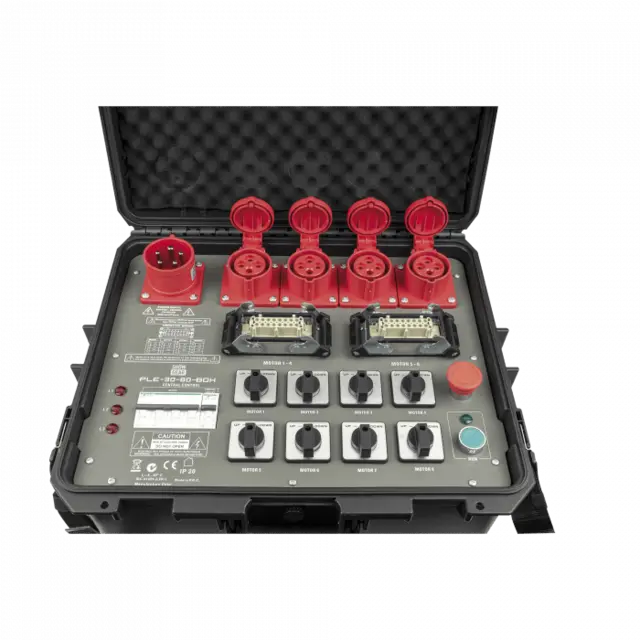

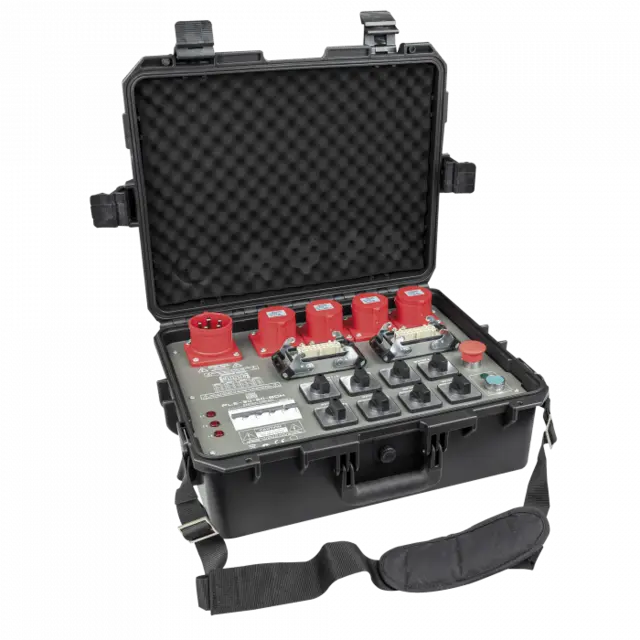

The Showgear Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. Each of the 8 hoists can be selected individually to go up or down or to be deselected. It has 4 x 4-pin CEE connectors as well 2 pieces of 16-pin multipin to connect a break/out box.

Specifications

Electrical Specifications and Connections

Power Supply: 400 V AC 3 Phase

Rated Current (A): 10 A

Power Connector In: CEE5P 32 A

Power Connector Out: CEE4P 16A, HAN16 Out

MCB Rated Current: 10 A

MCB Class: Class D

RCCB Class: C

Product Properties: LED Indicators

PowerMechanical Specifications

Housing: Plastic

Colour: Black

Length (mm): 550 mm (21.654?)

Height (mm): 220 mm (8.661?)

Width (mm): 465 mm (18.307?)

Weight: 12.9 kg (28.44 lb)
