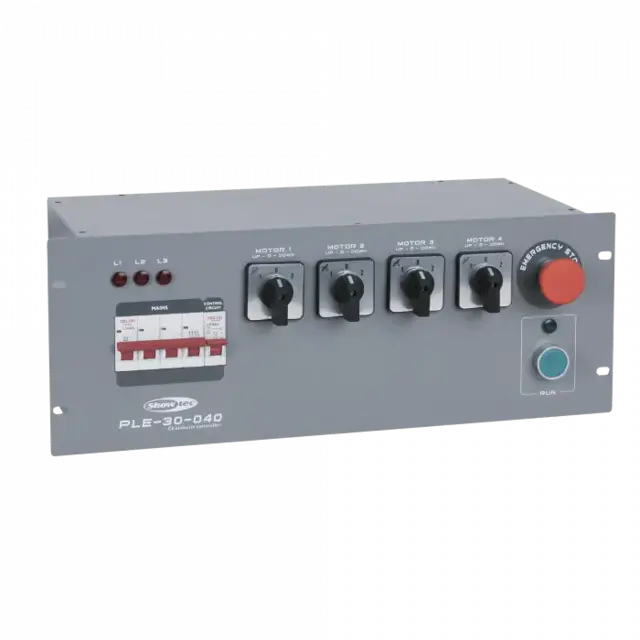

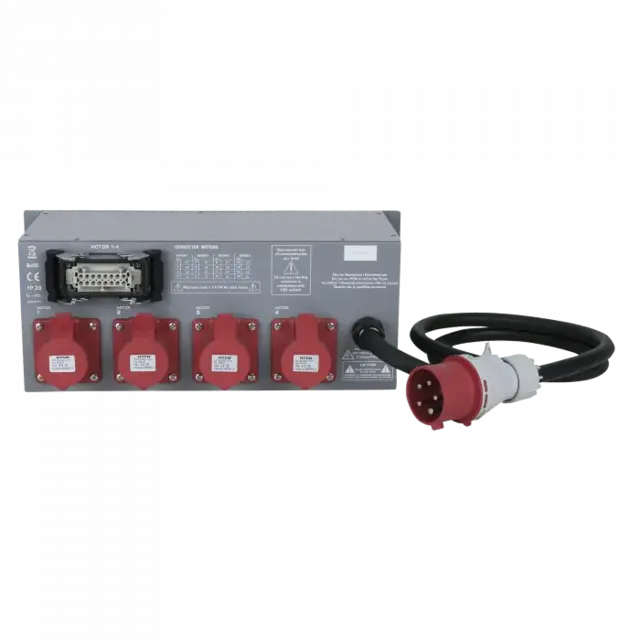

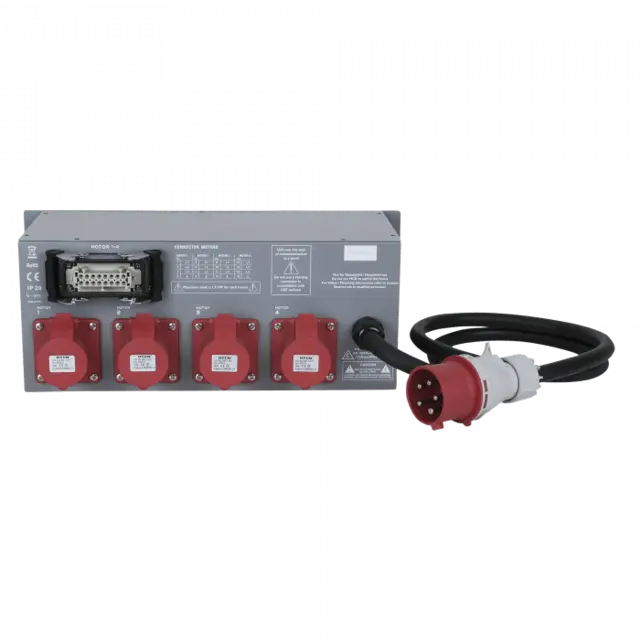

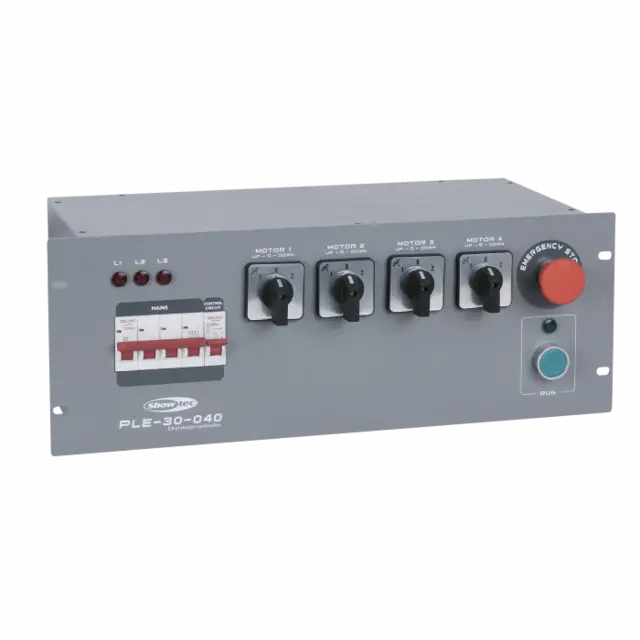

The Showgear Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. Each of the 4 hoist can be selected individually to go up or down or to be deselected. On the backside the unit has 4 x 4-pin CEE connectors as well as a 16-pin multipin to connect a break/out box.

Power Supply                         400 V AC 3 Phase
Power Connector In                CEE5P 32 A
Power Connector Out             CEE4P 16A, HAN16 Out
Cable Length                          1 m
MCB Rated Current               10 A
MCB Class                             Class D
Product Properties                  LED Indicators
Power                                     Mechanical Specifications
Housing                                  Metal
Finish                                     Powder Coating
Colour                                    Gray
Height (mm)                          178 mm (7.008?)
Width (mm)                           482 mm (18.976?)
Depth (mm)                           278 mm (10.945?)
Weight                                   10 kg (22.046 lb)
Rack Units                             4 U
Flightcase Size                       19"
IP Rating                                IP20 (indoor use only)
