150 W RGBAL LED with high CRI for accurate colour rendering
Suitable for theatrical applications, museums, and exhibitions
Manually adjustable zoom, and shutters
Hard-edged field of light
Filter frame includedT

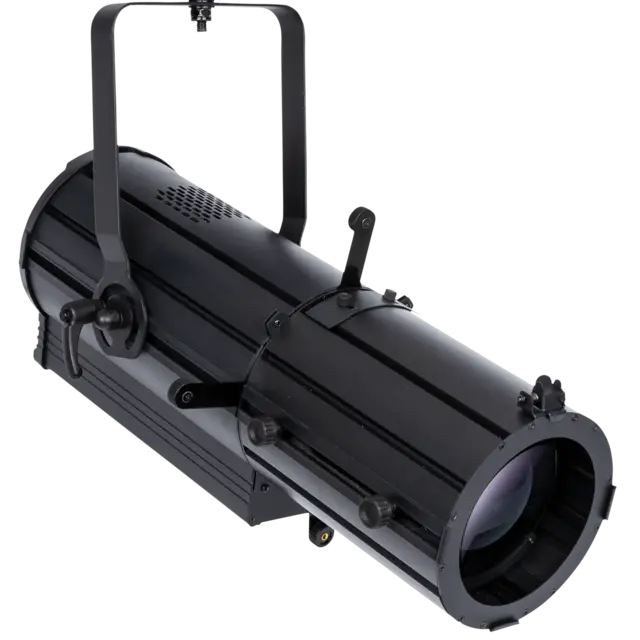

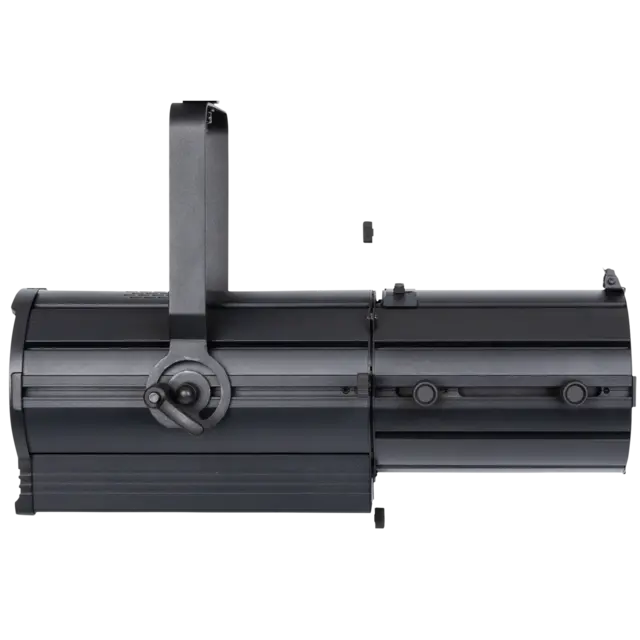

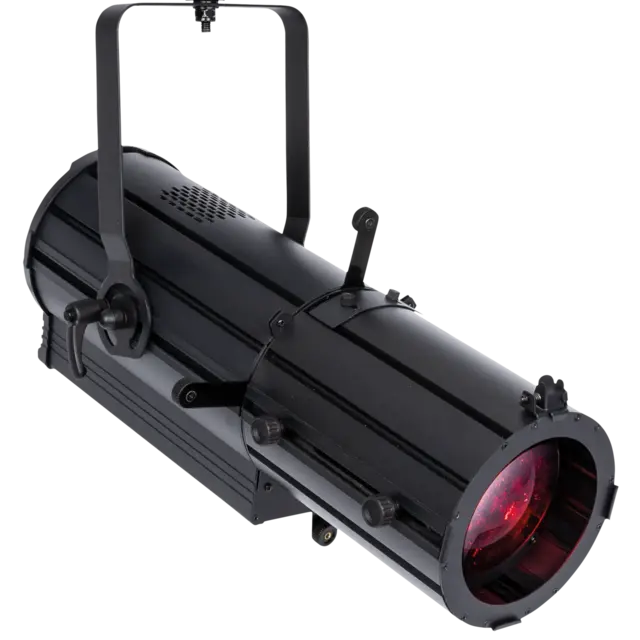

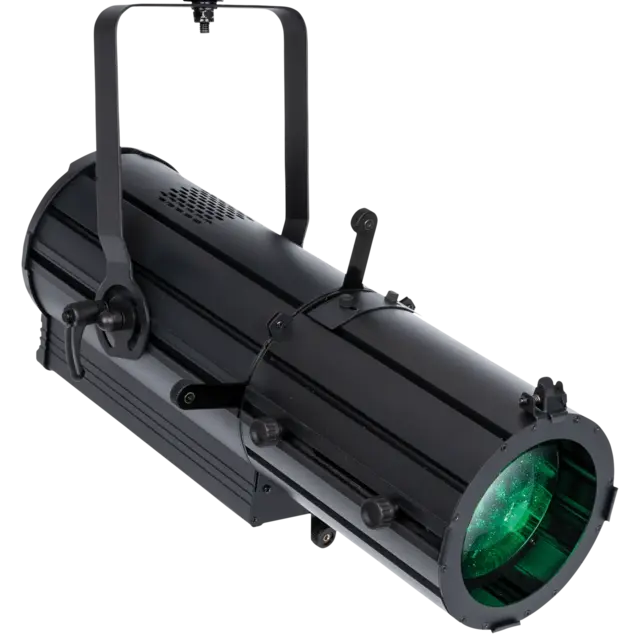

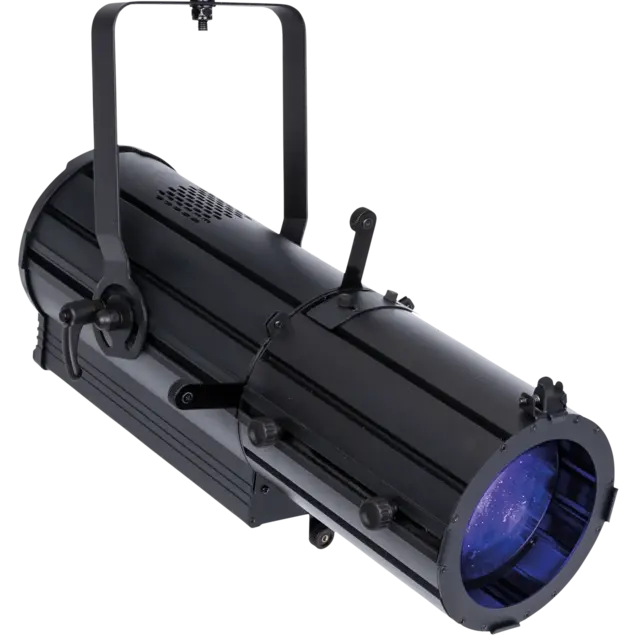

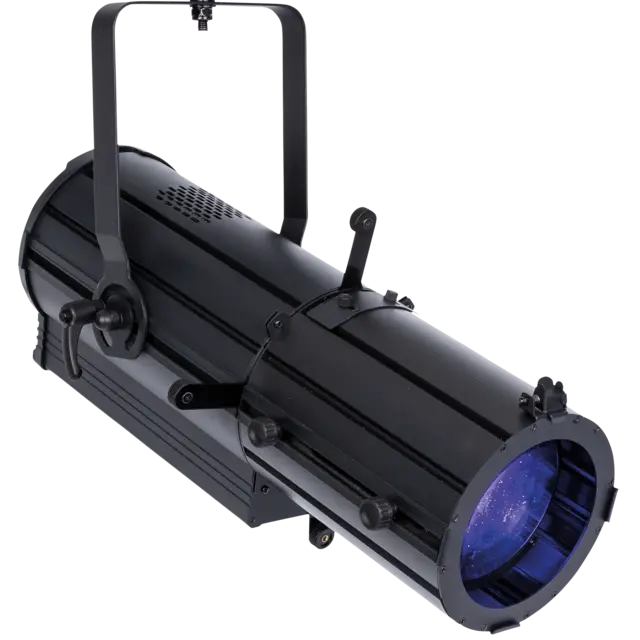

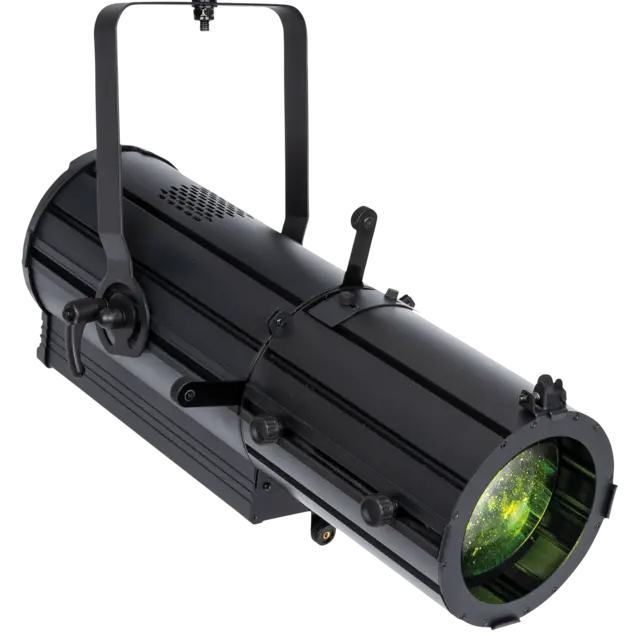

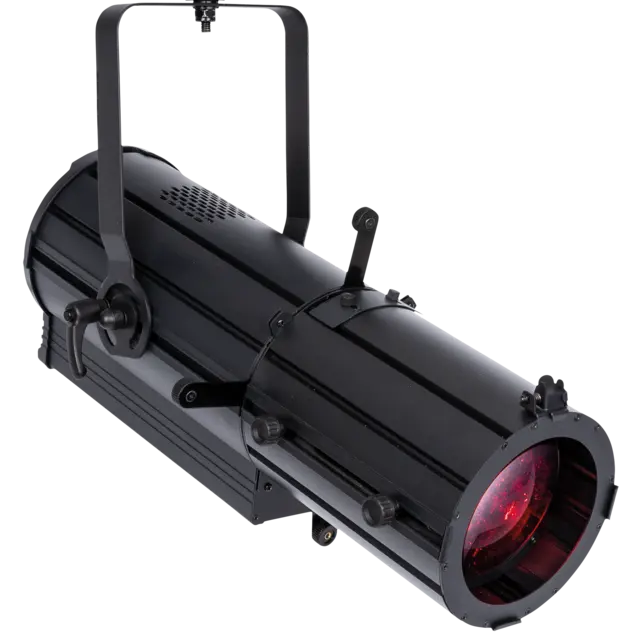

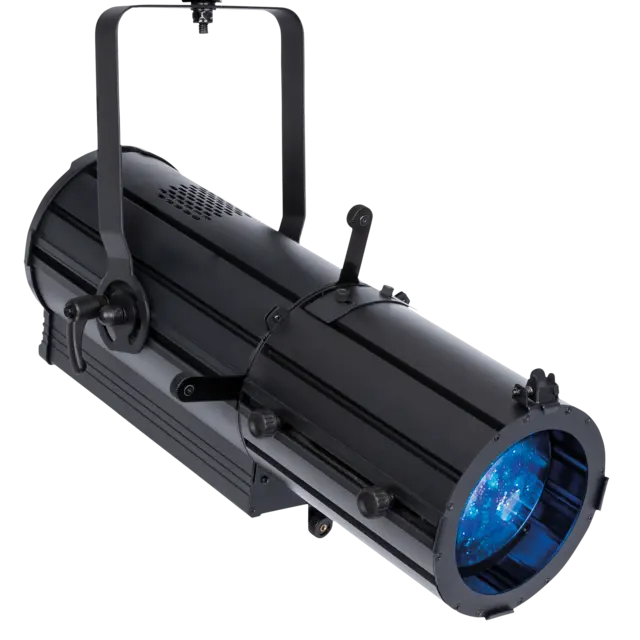

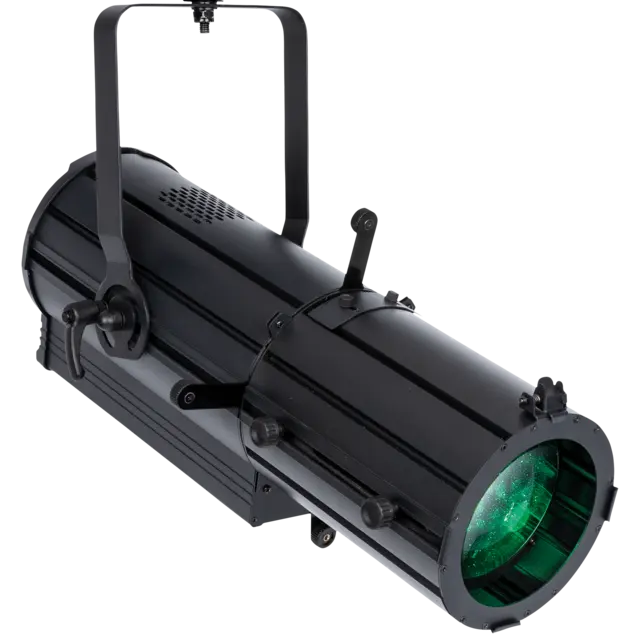

he Showtec ACT Profile 150 RGBAL is a compact 150-watt RGBAL LED profile with high CRI and silent operation, suitable for theatrical applications, schools, museums, and exhibitions. It projects a bright, hard-edged beam of light within a 23° - 46° manually adjustable zoom range. The ACT Profile 150 RGBAL can be controlled via DMX, RDM, and it is equipped with one knob for manual colour and dimmer control. It comes with 5 design gobos and a four-blade shutter system, allowing you to add the proper intensity of light where it's needed.
Specifications
Source
Light Source Type. LED
Light Source Quantity. 1
Light Source Power. 150 W
LED Colour Type. RGBAL
Refresh Rate (Max.). 1 kHz
Illuminance @ 3 m. 3260 lx
Luminous Flux (Total). 3571 lm
CRI. 91
Minimum CCT. 2700 K
Maximum CCT: 10000 K
Optical
Beam Angle Minimum (Circular): 23 °
Beam Angle Maximum (Circular): 46 °
Zoom Type: Manual
Zoom Ratio: 1:2
Zoom Minimum: 23 °
Zoom Maximum: 46 °
Control and Programming
Control Mode: DMX, Manual, RDM
DMX Channels: 5, 8, 12
Protocols: DMX, RDM

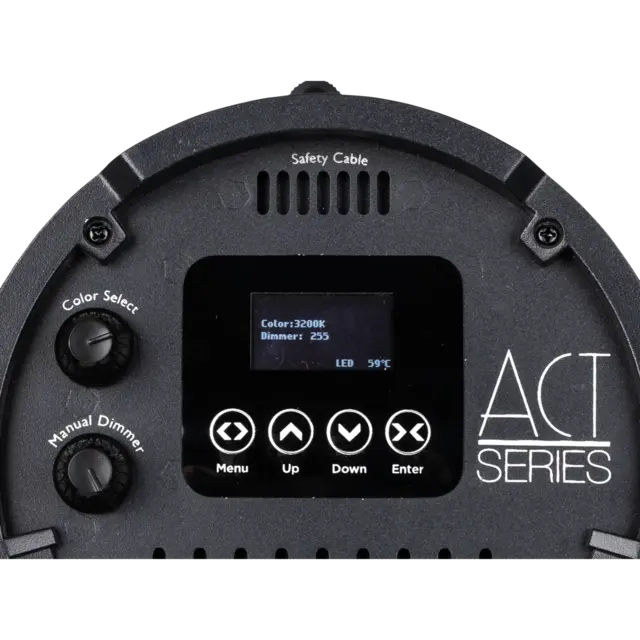

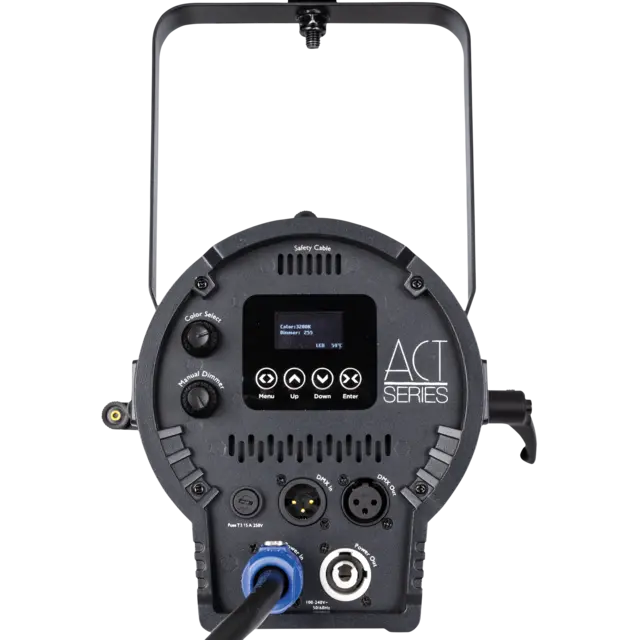

Display: OLED
Display Size: 1.3 "
Dimmer Resolution: 16 bit
Dynamic Effects
Dimmer: 0-100 %
Electrical Specifications and Connections
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 180 W
Fuse: 3.15 A
Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
DMX Connector: XLR 3P In/OutDMX
Connector In: XLR 3PDMX
Connector Out: XLR 3P
Mechanical Specifications
Length (mm): 531 mm (20.906?)
Width (mm): 226 mm (8.898?)
Height (mm): 373 mm (14.685?)
Weight: 6.15 kg (13.558 lb)
IP Rating: IP20 (indoor use only)
Housing: Aluminium, Metal
Colour: Black
Product Properties
Cooling: Forced Convection
Rigging
Mounting Options: Bracket
Safety Attachment: Yes
Safety Eyes: 1
Thermal Specifications
Maximum Ambient Temperature: 40 °C (104 °F)
Included Items
Included Cables: Power Pro Cable
