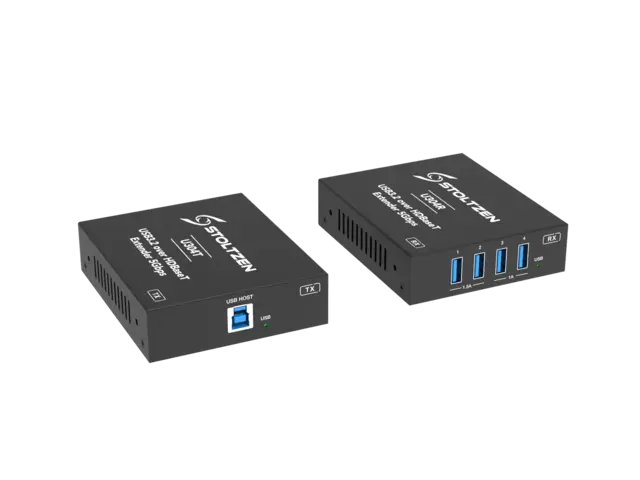

Stoltzen HERA U304 USB3.2 Extender 100M
USB 3.2 5Gbps 100M

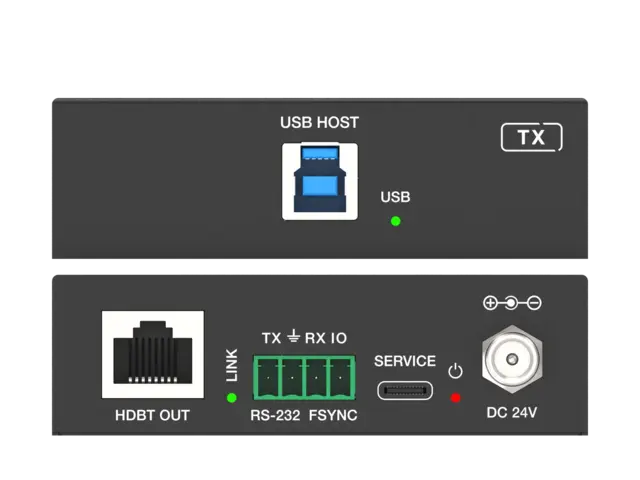

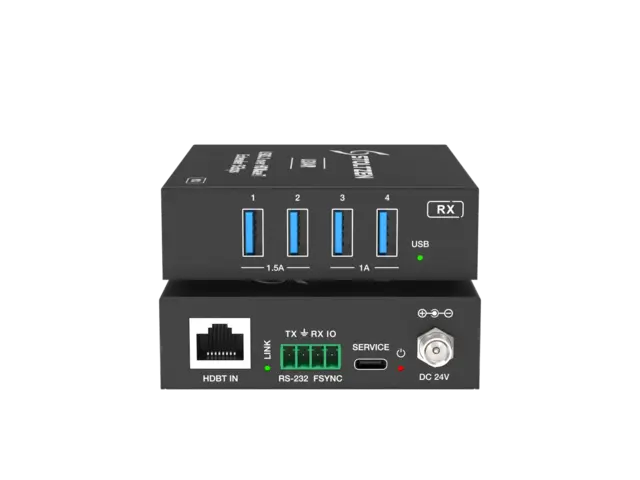

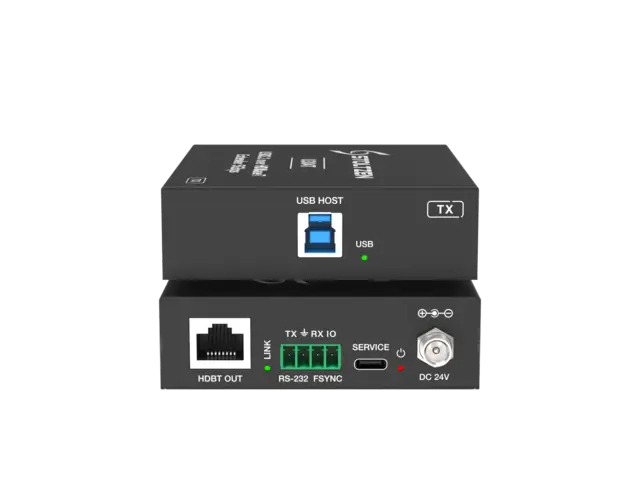

The USB 3.2 Extender can extend USB signal to a distance up to 100m/328ft via a single CAT6a cable. Transmitter features with one USB 3.0 Type B input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.0 Type A outputs, one FSYSNC GPIO output and one RS-232 pass-through. Bi-directional 24V PoC is also supported.The product can be widely used for long distance signal transmission between a PC and USB devices.
- Extension of USB 3.2 up to 100m/328ft over CAT6a cable
- USB 3.2 connectivity with data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
- Support bi-directional 24V PoC
Main Specifications
| Brand | Stoltzen |
|---|
| Color | Black |
|---|
| USB version | 3.2 Gen1 |
|---|
| Power supply | DC 24V |
|---|
| Number of outputs | 4 |
|---|
| Type of inputs | USB A |
|---|
| Product series | HERA |
|---|
Extended Specifications
| Transmission speed | 5Gbps |
|---|
| Construction type | Steel |
|---|
| Compatible with | USB 1.1/2.0/3.2 |
|---|
| |
|---|
