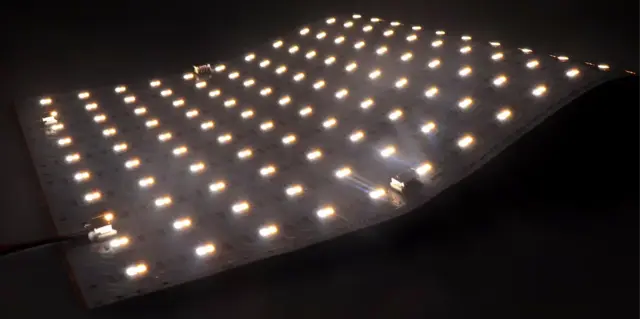

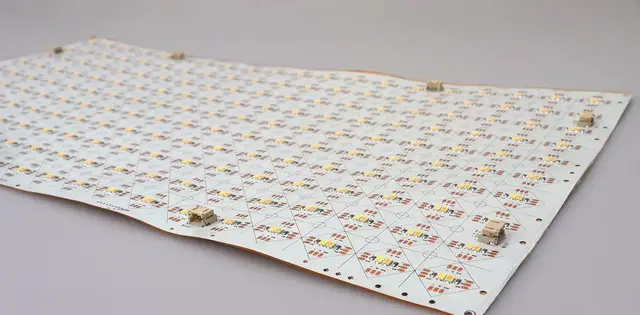

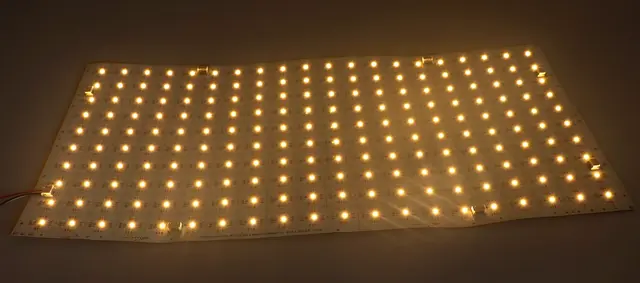

SHEET 60W Tunable White 480x240mm
Tight Sheet allows you to be creative with size, shape and form. We have developed an LED sheet that you can cut exactly where you want. With our power connectors evenly distributed on the sheet, you can choose where you want power in and the possibility of linking on to other sheets is enormous.
Electrical & Optical data
| Dimension | LED Quantity | LED Quantity/Step | Step Lenght | Power |
480x240mm | 400 | 2 LED | 24mm | 60W |
Efficacy | View angle | Voltage(V) | Current(A) | Operation temperature |
92lumen/Watt | 120° | 24V | N/A | -20°C~+45°C |
| Product number | Lumen | Ra (CRI) | R9 | Color temperature (K) |
| TS-60-TW27-6K-24-20 | 5520 | 80 | N/A | 2700K+6000K |
