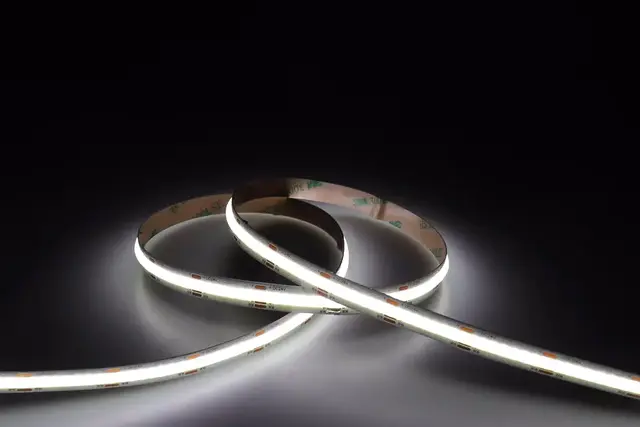

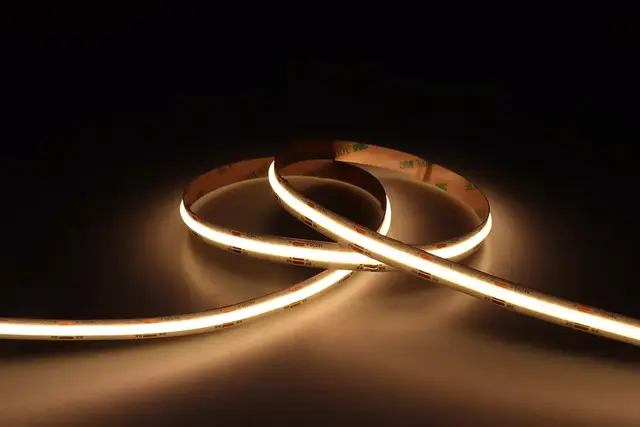

100W TUNABLE COB 608leds 10mm
Tunable white COB dotless led strip.
With the tunable white COB, you can change the color temperature from 2700K to 6500K.
Tunable white COB led strip or CCT adjustable COB led strip has 608 chips per meter and no light spots
About
What is COB LED Strip?
COB means Chips on Board, which means that the chips are directly encapsulated on the flexible PCB board, and the COB led strip is a strip of chips encapsulated on a flexible board. The chips are mostly flip-chips, which are linearly fixed on the PCB board, and then a layer of encapsulation glue mixed with phosphor is directly dropped on the surface of the chip. The light emitted from the chip is refracted, reflected, and interacts with the phosphor, and the glue emits different colors and color temperatures of light evenly.
So, COB LED strip light is also called continuous led strip light or dotless led strip lights.
Applications of COB LED strips
The COB flexible LED strip that we manufacture is highly versatile and can be used in various different industries.
- Architectural lighting
- TV Studios
- Theatre
- Furniture & wine cabinet lighting
- Holtel renovation lighting
- Shopping mall lighting
Electrical & Optical data
| Dimension | LED Quantity | LED Quantity/Step | Step Lenght | Power |
10x2mm | 608 | 16LED | 26,31mm | 20W |
Efficacy | View angle | Voltage(V) | Current(A) | Operation temperature |
100lumen/Watt | 180° | 24V | 0,83 | -20°C~+50°C |
| Product number | Lumen | Ra (CRI) | R9 | Color temperature (K) |
| | 2009 | 95 | 98 | 2700 & 6000 |
