DmxMerger
DIN rail DMX merger

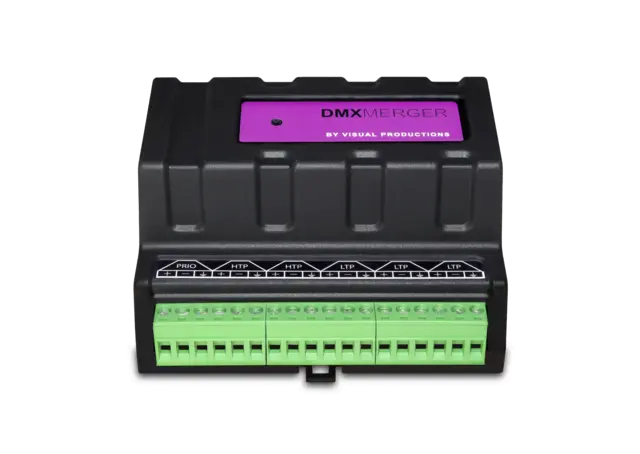

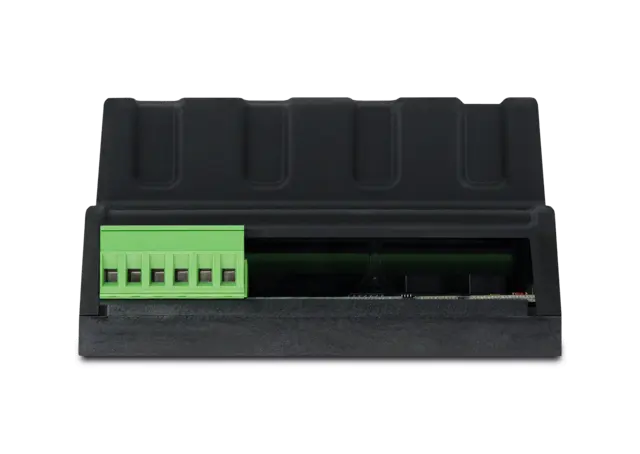

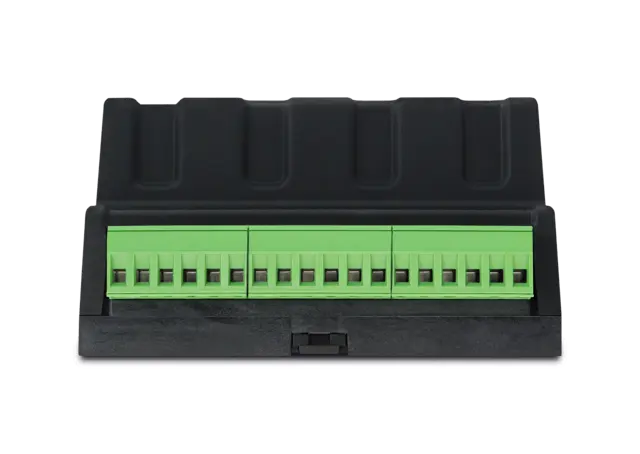

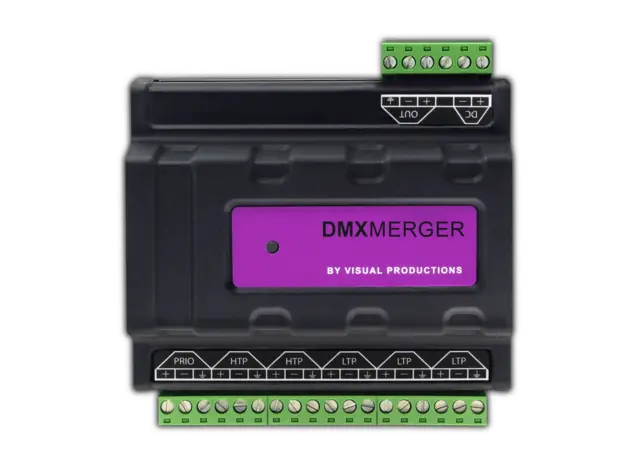

The DmxMerger is DMX-512 merger in a DIN rail form factor. The device features six optically isolated DMX inputs and one optically isolated DMX output.
Specifications
6 Inputs
Optical Isolation (individual per port)
USITT DMX512-A (ANSI E1.11)
Screws connectors
DIN Rail mounting
Power consumption 9-24V DC 500mA power input (optional external PSU)
Dimensions 105 x 86 x 60 mm (4.1 x 3.4 x 2.4 inches)
Weights 120 gram (0.26 lbs)
