10Gb Network switch for converged AV networks

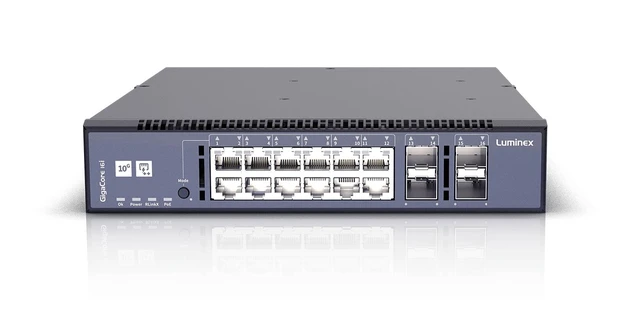

GigaCore 16i is a 10 Gigabit Ethernet switch in a ½ 19” package, dedicated to AV integration and installations where there are specific requirements to available space and mounting.

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

• Most suitable applications: Installations
• PoE: PoE++ Optional (up to 450W or up to 850W with RPSU 5580)
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes
• Profile manager: Yes
• Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
• MAC address table: 16384 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput 64 Byte: 77,38Mpps
• Switching capacity: 104Gbps
• Jumbo frames: MTU up to 12000
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
• TAA Compliance:
