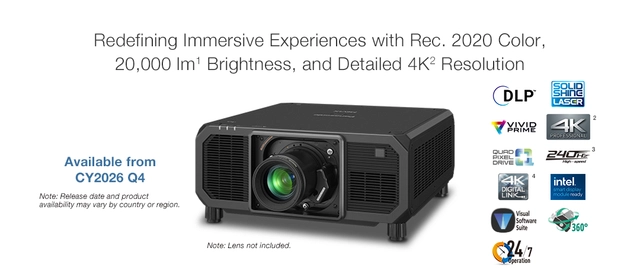

| | PT-HTQ20 |
|---|
| Projector type | 1-Chip DLP™ RGB laser projector |
|---|
| DLP™ chip | |
|---|
| Panel size | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) |
|---|
| Display method | DLP™ chip x 1, DLP™ projection system |
|---|
| Number of pixels | 2,304,000 pixels (1920 x 1200 dots) |
|---|
| Light source | Laser diodes (Red LD, Green LD, Blue LD) |
|---|
| Light output1, 2 ? | 20,000 lm3 / 20,000 lm (ANSI)4 / 21,000 lm (Center)5 |
|---|
Time until light output declines
to 50 %6 | 20,000 hours (NORMAL), 24,000 hours (ECO) |
|---|
| Resolution | 4K (3840 x 2400 dots) (Quad Pixel Drive: ON) |
|---|
| Contrast ratio3 | 25,000:1 (All white/All black, Dynamic Contrast [3]) |
|---|
| Screen size (diagonal) | 1.78–25.40 m (70–1000 in) (Depending on attached lens) |
|---|
| Center-to-corner zone ratio3 | 90 % or above |
|---|

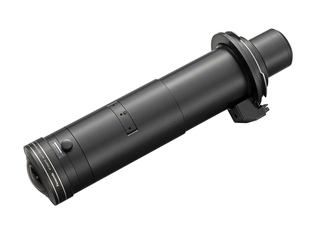

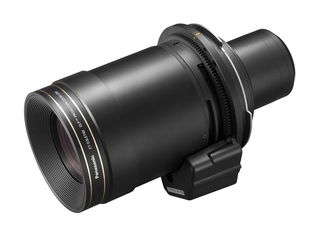

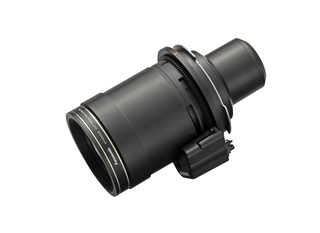

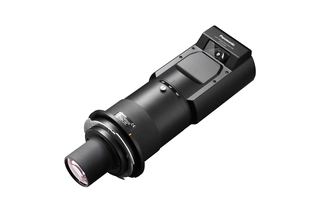

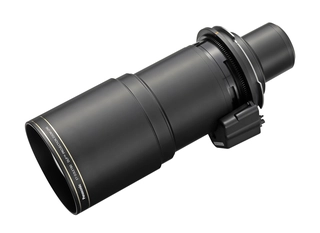

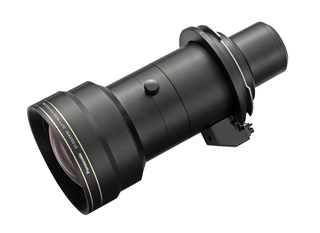

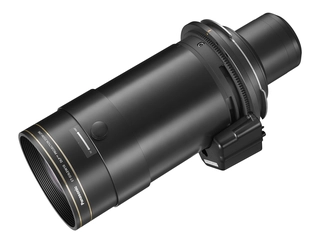

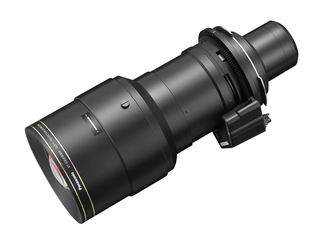

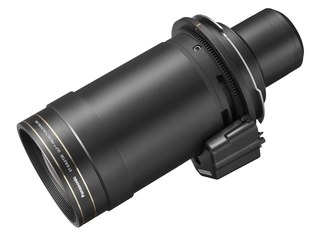

| Lens | Optional (No lens included with this model) |
|---|
| Lens shift (From the origin point of the lens mounter) | |
|---|
| Vertical | ±55 % (Max, depending on attached lens) |
|---|
| Horizontal | ±20 % (Max, depending on attached lens) |
|---|
| Keystone correction range | Vertical: ±55 % (Max, depending on attached lens)
Horizontal: ±20 % (Max, depending on attached lens) |
|---|
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
|---|
| Terminals | |
|---|
| HDMI™ 1/2 IN | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
|---|
| SDI IN | 12G/3G/HD-SDI signal compatible |
|---|
| SERIAL IN | D-sub 9-pin (Female) x 1 for external control (RS-232C compliant) |
|---|
| MULTI PROJECTOR SYNC IN | BNC x 1, TTL high impedance |
|---|
| MULTI PROJECTOR SYNC OUT | BNC x 1, TTL output: Maximum 10 mA |
|---|
| REMOTE IN | M3 stereo mini-jack x 1 for wired remote control |
|---|
| REMOTE OUT | M3 stereo mini-jack x 1 for link control (For wired remote control) |
|---|
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
|---|
| USB/DC OUT | USB connector (Type A) x 1 for connecting optional AJ-WM50 Series Wireless Module/USB memory or
for power supply (DC 5 V, 2 A) |
|---|
| Expansion slot | Slot x 1, open slot, for function boards, Intel® SDM standard-compatible |
|---|
| Protocol versions | IPv4, IPv67 |
|---|
| Power supply | Single-phase AC 100–120 V8 / Single-phase AC 200–240 V, 50/60 Hz |
|---|
| Maximum power consumption9 | AC 100–120 V: 1,430 W (1,440 VA), AC 200–240 V: 1,450 W (1,465 VA) |
|---|
On-mode power consumption
(Operating mode)9, 10 | [NORMAL]AC 100–120V: 1,200 W AC 200–240V: 1,165 W
[ECO]AC 100–120 V: 990 W AC 200–240 V: 950 W |
|---|
| Cabinet materials | Molded plastic, processed metal parts |
|---|
| Operation noise3 | 42 dB (NORMAL/ECO) |
|---|
Dimensions
(W x H x D) | Approx. 590 x 220 x 600 mm (23 7/32? x 8 21/32? x 23 5/8?) (Excluding feet, protruding parts, and lens) |
|---|
| Weight11 | Approx. 38.7 kg (85.3 lbs) |
|---|
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)12, operating humidity: 10–80 % (No condensation) |
|---|
| Applicable software | Multi Monitoring and Control Software for Windows®, Visual Software Suite for Windows®,
Projector Network Setup Software for Windows®, Smart Projector Control for iOS/Android™ |
|---|
Control function
via LAN | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net, AMX® DD, Extron® XTP13, and PJLink™ (Class 2) |
|---|
