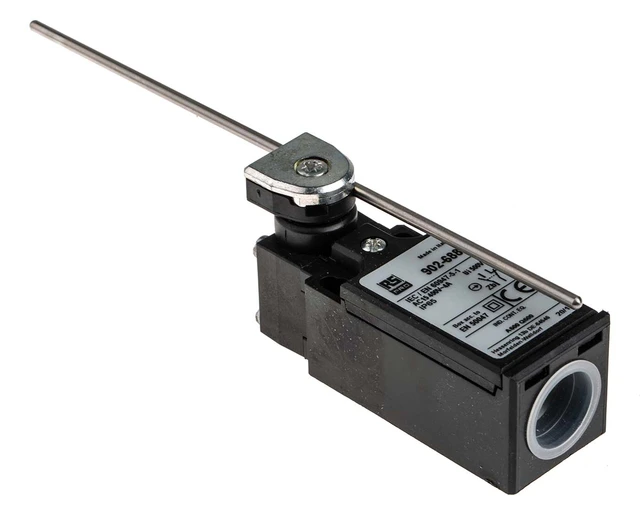

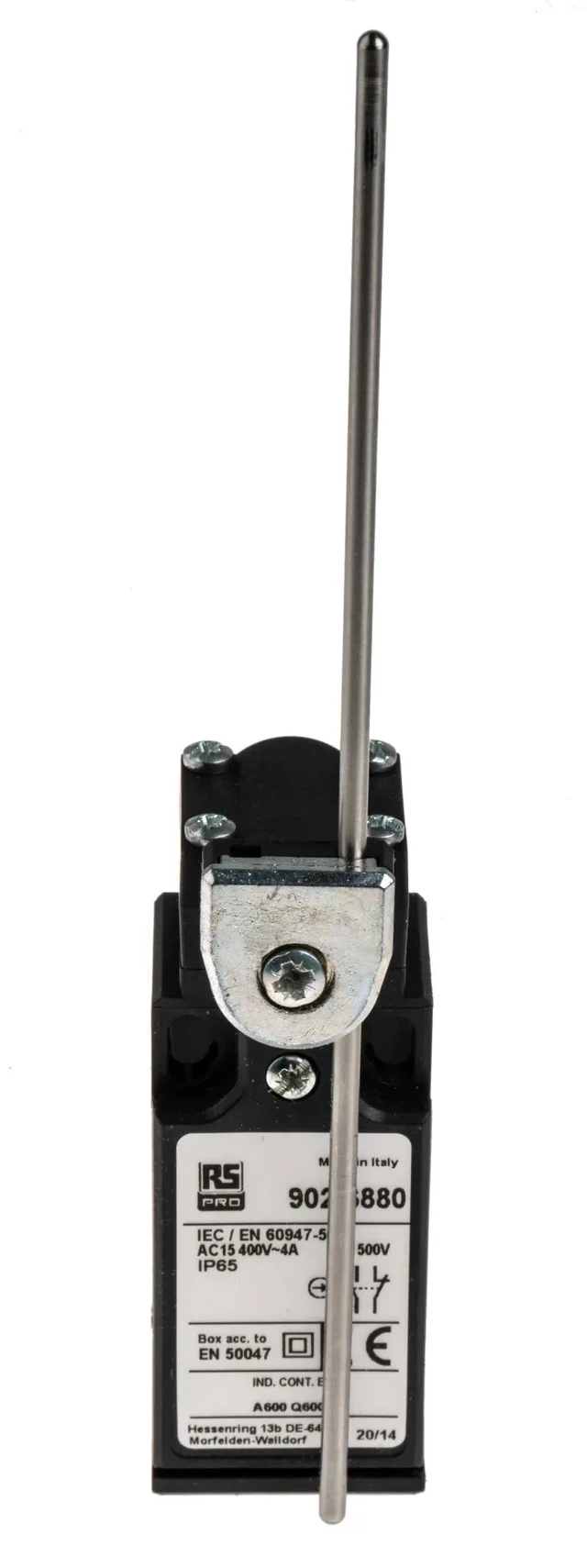

RS PRO Snap Limit Switch - Thermoplastic Fibreglass, NO/NC, Adjustable Lever, 400V, IP65

This versatile snap limit switch is commonly used in industrial applications to automatically control mechanical equipment. It's easy to install and boasts a simple, visible operation. It can conveniently start, stop or slow down a device when a specific limit is reached. This could be when a pre-set number of objects is counted, for example, or when a part passes a pre-defined point.
This switch can handle currents of up to 10 A. It also features long-lasting, reliable snap action that accurate, repeatable contact closure. It's easy to adjust the rotary lever actuator, which is useful when you're not sure what arm length is needed.
Made from UL-VO (flame-retardant) thermoplastic fibreglass, this limit switch is doubly insulated. It has an IP65 protection rating, meaning it's dust and oil resistant. It's suitable for controlling a variety of devices from robotic arms to garage doors.

Features and Benefits

• Dimensions of 30.3 mm (L) x 230.5 (W) x 30 mm (D)
• Maximum Voltage (AC) of 400 V
• Maximum Voltage (DC) of 250 V
• Cable connection
• Screw terminal
• DPST pole and throw configuration
• Minimum operating temperatures -25°C
• Maximum operating temperature of +70°C
• 0.1 N operating force
• Vertical orientation
• Minimum of 15,000,000 operations
• Snap minimum operating contact type
• Thermoplastic fibreglass housing type
• Adjustable lever actuator type
• Vertical mounting orientation
• IP65 rating for dust and water protection
