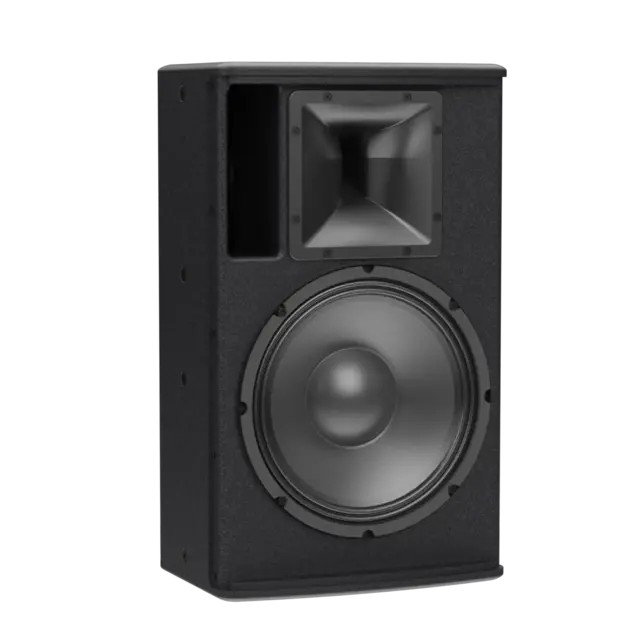

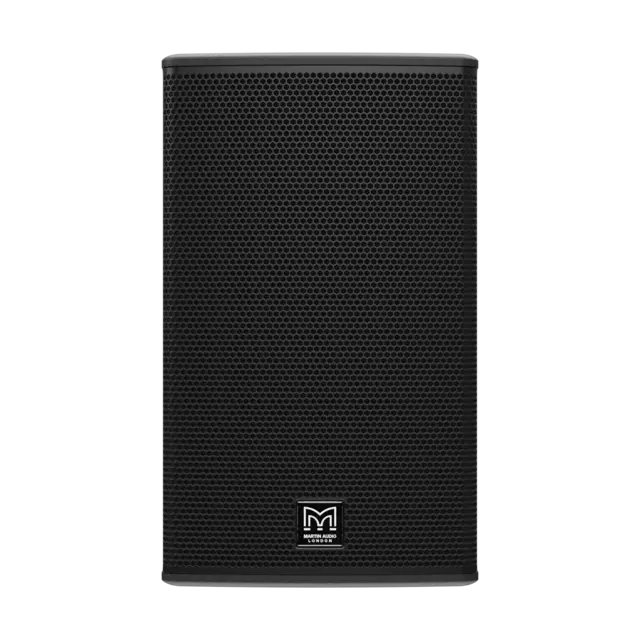

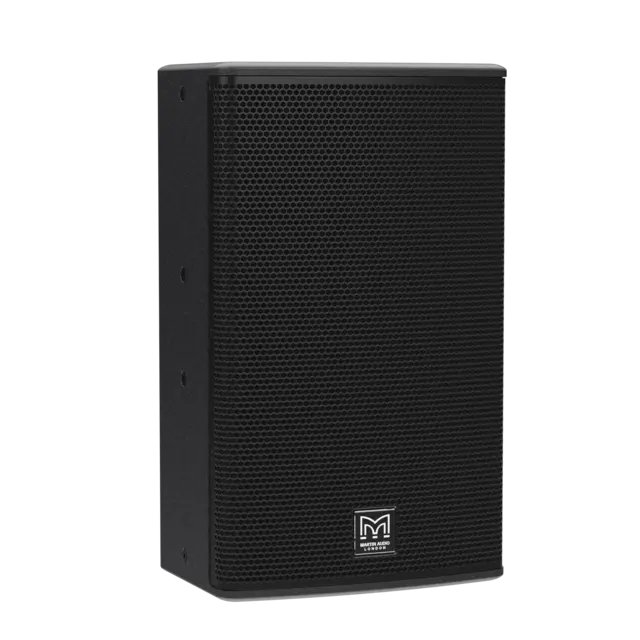

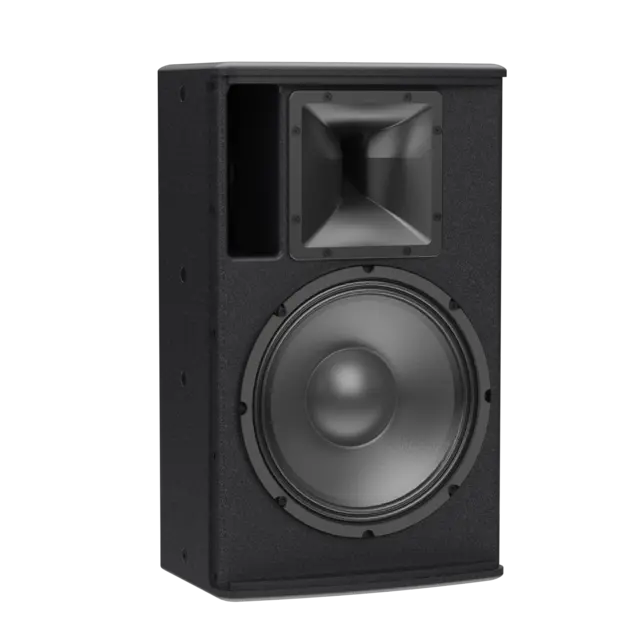

Blackline Q12 is a compact yet powerful loudspeaker, featuring a 12” (300mm) LF driver with 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with 1.7” (43mm) dome. Its Differential Dispersion horn ensures wide and consistent coverage and can be easily rotated for either horizontal or vertical orientation, making it adaptable to various deployment needs.

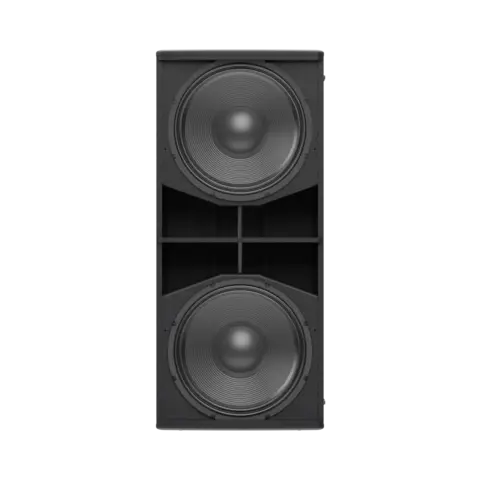

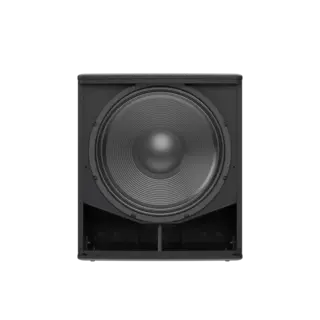

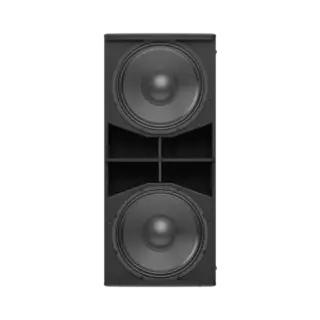

When paired with a BlacklineQ Series subwoofer, Q12 transforms into a high-performance dancefloor or sound reinforcement system—delivering impressive output and clarity for its size, while remaining highly portable.

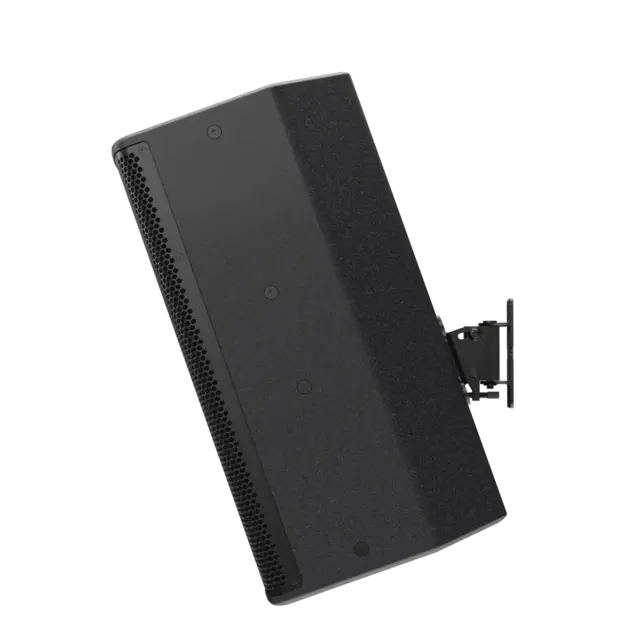

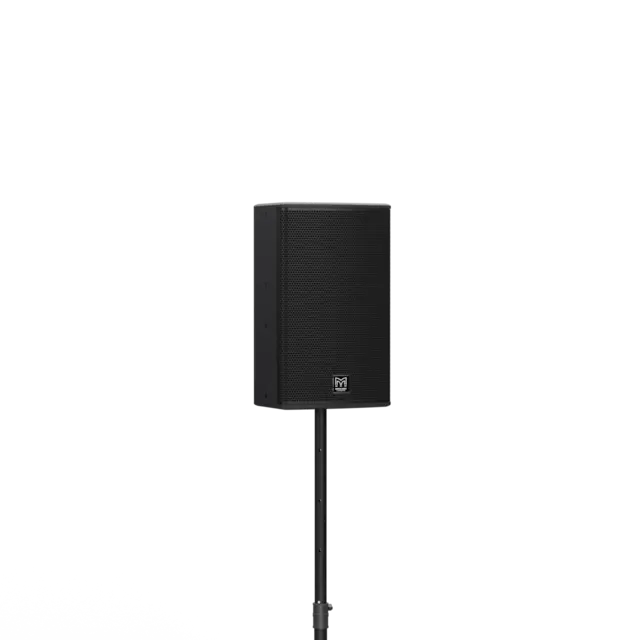

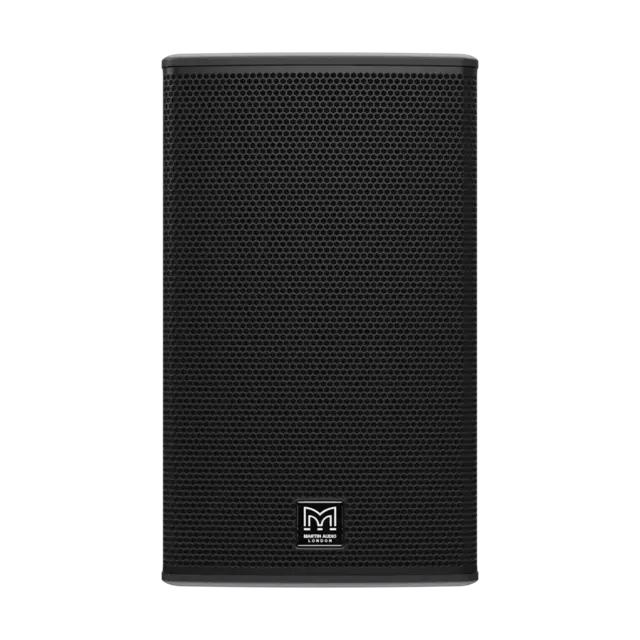

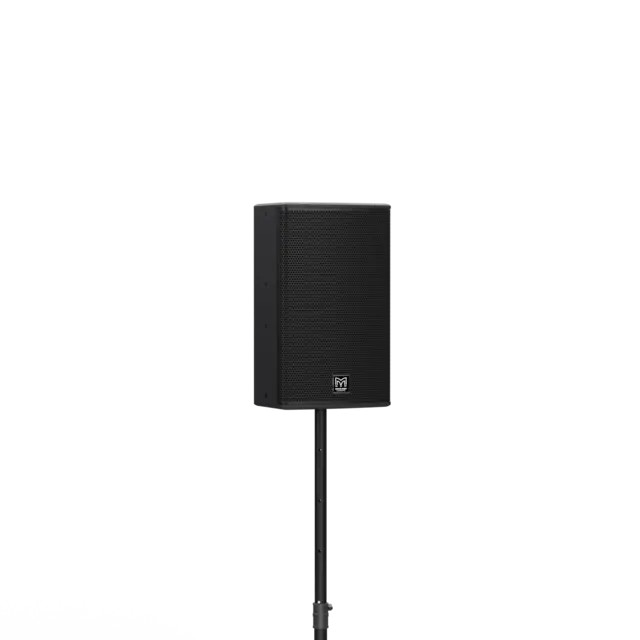

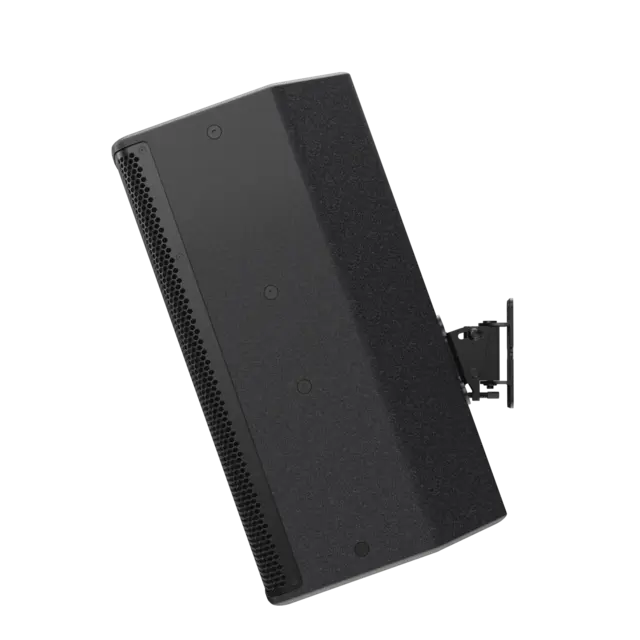

Constructed from durable plywood, Q12 is finished in a tough black paint and protected by a screw-tight steel grille. It includes M8 inserts for wall brackets, yoke or eyebolt suspension, and the pole-mount socket has a removable cover to maintain clean aesthetics in installed applications.

This full-range, passive two-way system is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.

With a peak SPL of 127dB (133dB with crest factor 4), Blackline Q12 meets the demand for a compact loudspeaker capable of delivering high sound levels — whether used as a stand-alone system or in combination with a BlacklineQ subwoofer. It features a 12” (300mm) LF driver with a 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with a 1.7” (43mm) dome. It has a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation, depending on deployment requirements.

Features

• Compact passive two-way system

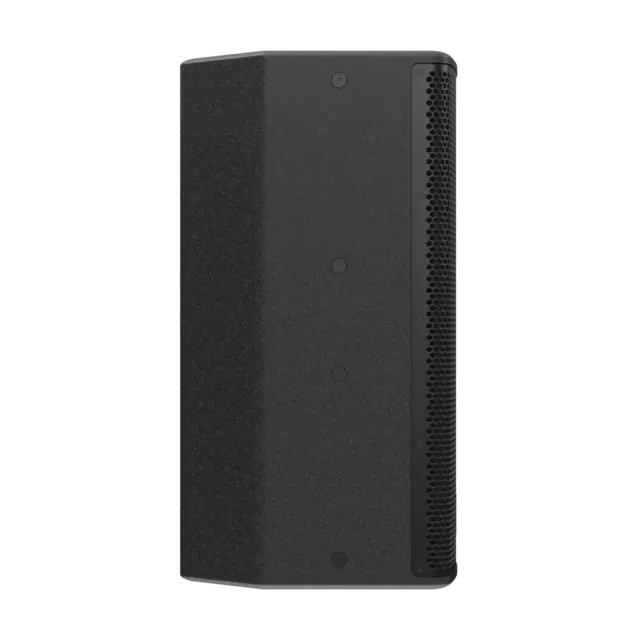

• Symmetrical multi-angle plywood enclosure
• Peak SPL of 127dB (133dB with crest factor 4)
• User-rotatable Differential Dispersion horn
• Dispersion: 90°–110° horizontal × 50° vertical
• Vertical and horizontal orientation
• Screw-tight, cloth-backed perforated steel grille
• Integrated ergonomic handle made from recycled ABS

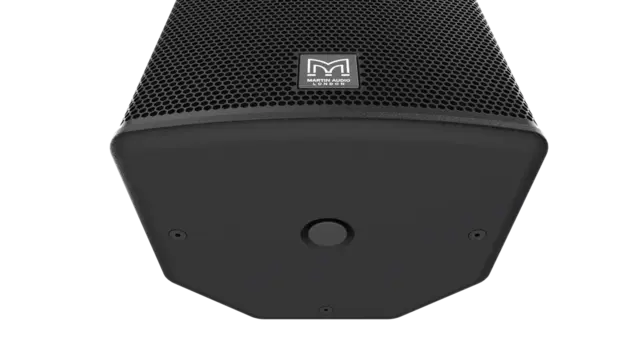

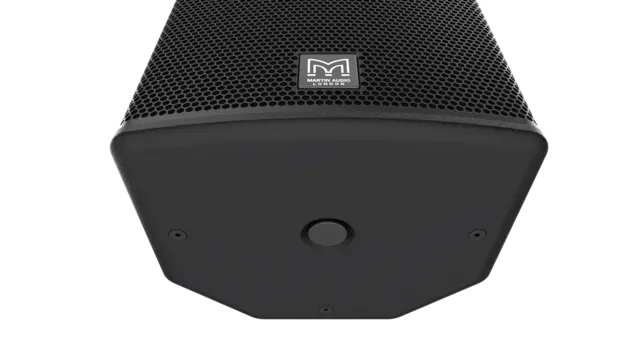

• Pole-mount cover maintains clean lines
• 8O nominal impedance
• Two NL4 connectors
• Flexible mounting options via M8 inserts

Applications

• Portable sound reinforcement
• Live music clubs
• Bars and restaurants
• Nightclubs
• Unobtrusive stage monitoring
• Corporate AV events and conferences
• Weddings and parties
• Main PA infill
• Secondary stages at festivals
• Houses of worship, leisure centres and retail outlets
