Showtec ColorCue 1
Intelligent 1-fader, 6-colour LED controller
- Intelligent single-fader LED DMX controller
- Suitable for 3- to 6-colour spots
- 12 fixed and 12 user colours
- 12 fixed and 12 user chases with up to 99 steps
- Manual, Auto run and Sound-controlled mode

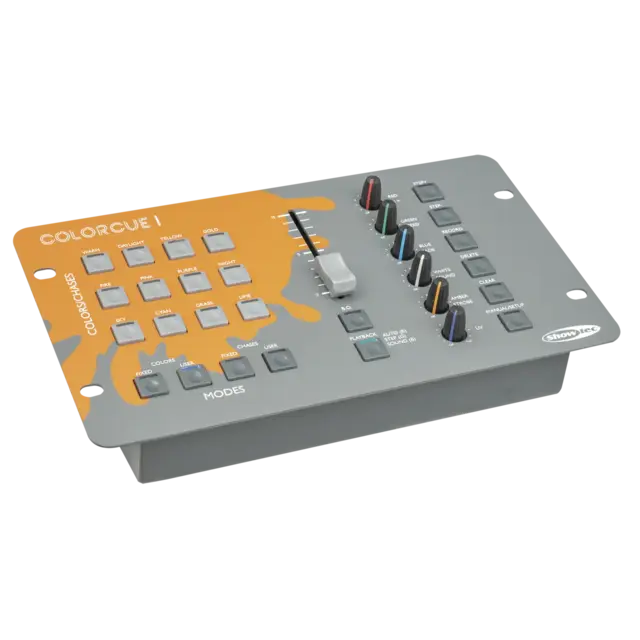

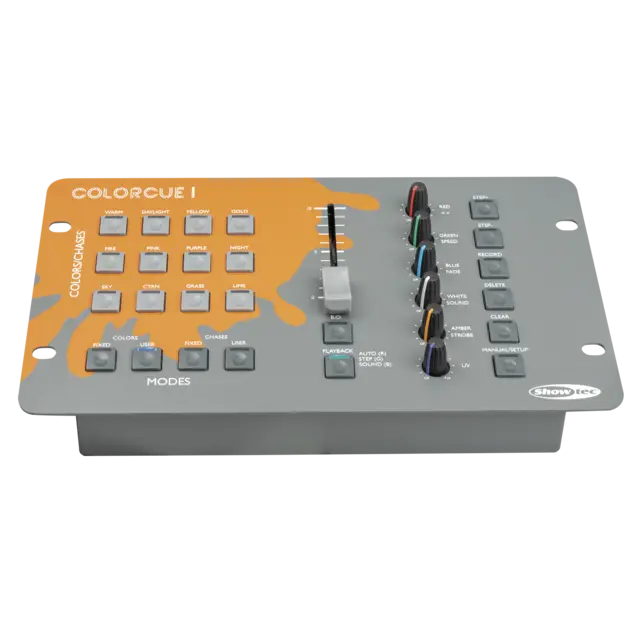

The Showtec ColorCue 1 is an intelligent 1-fader LED DMX controller with 6 channels for easily controlling the light output of LED fixtures with up to 6 colours (RGBWA-UV), suitable for any venue. Its 6 potentiometers enable you to quickly tune the lights to your desired colour, from 3-colour RGB to 6-colour RGBWA-UV. The ColorCue 1 enables you to create your own 12 preset colours and you can choose between 12 fixed colours. You can create up to 12 programs (chases) with each up to 99 steps for changing colours and effects in a loop. The chases can be controlled in Manual, Auto run or Sound-controlled mode.
|
Control and
Programming
|
|
|
Control
Mode
|
Built-in
Program, Manual, Sound, Static Dimmer
|
|
DMX
Channels
|
6
|
|
Protocols
|
DMX
|
|
Buttons
|
24
|
|
Faders
|
1
|
|
Memories
|
1212
|
|
|
|
Electrical
Specifications and Connections
|
|
|
Power
Supply
|
100-240
V AC 50/60 Hz (Power adapter)
|
|
Power
Consumption
|
10
W
|
|

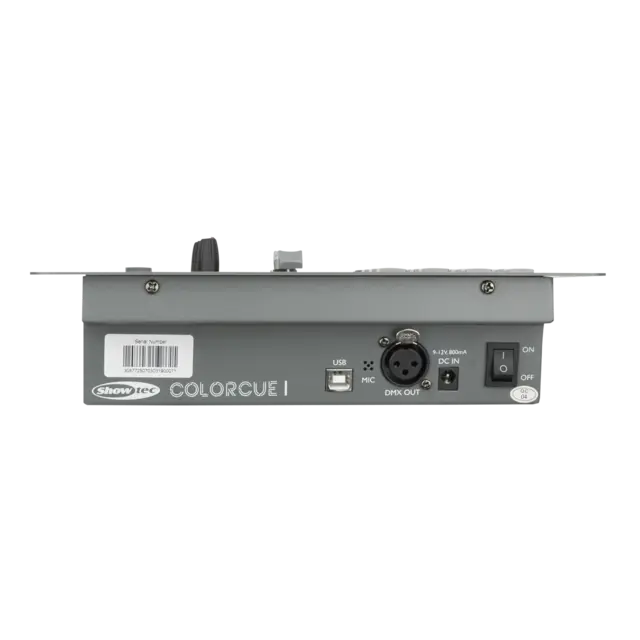

Power
Connector In
|
Low
Voltage DC plug
|
|
DMX
Connector Out
|
XLR
3P
|
|
Audio
Triggers
|
1
|
|
|
|
Power Adapter
|
|
|
Adapter
type
|
AC-DC
adapter
|
|
Input
voltage
|
100-240
V AC, 50/60 Hz V
|
|
Output
voltage
|
12
V DC
|
|
Output
current DC (mA)
|
1500
mA
|
|
|
|
Mechanical
Specifications
|
|
|
Length
(mm)
|
258
mm
|
|
Width
(mm)
|
150
mm
|
|
Height
(mm)
|
79
mm
|
|
Installation
Depth (Excl. Connector)
|
79
mm
|
|
Weight
|
1.1
kg
|
|
Rack
Units
|
3
U
|
|
IP
Rating
|
IP20
(indoor use only)
|
|
Housing
|
Metal
|
|
Colour
|
Gray,
Orange
|
